Super lightweight and mobile for high-speed picking - Tote-shaped upper shelf eliminates need for additional bins
Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.
In loose-item fulfillment, relying on separate plastic pick bins creates ongoing bin replenishment shortages, bin breakage costs, and container storage clutter.
Target Deployment: Apparel and footwear fulfillment hubs, retail return consolidation centers, and loose-item order processing lines.

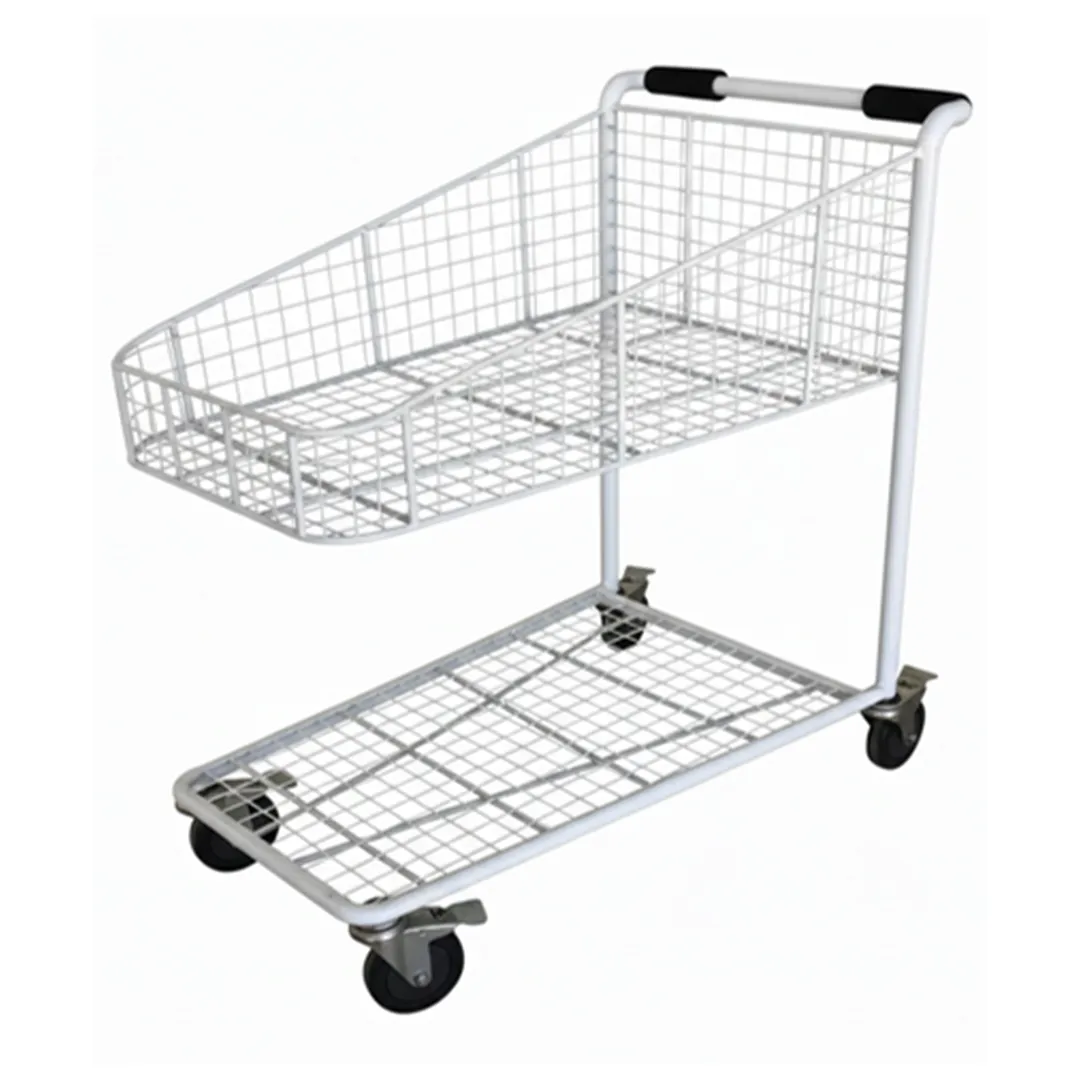

Integrated Deep-Tote Wire Basket: Replaces external plastic containers with a built-in deep wire mesh basket on the upper tier, allowing operators to drop loose items directly into the cart without needing separate plastic totes.

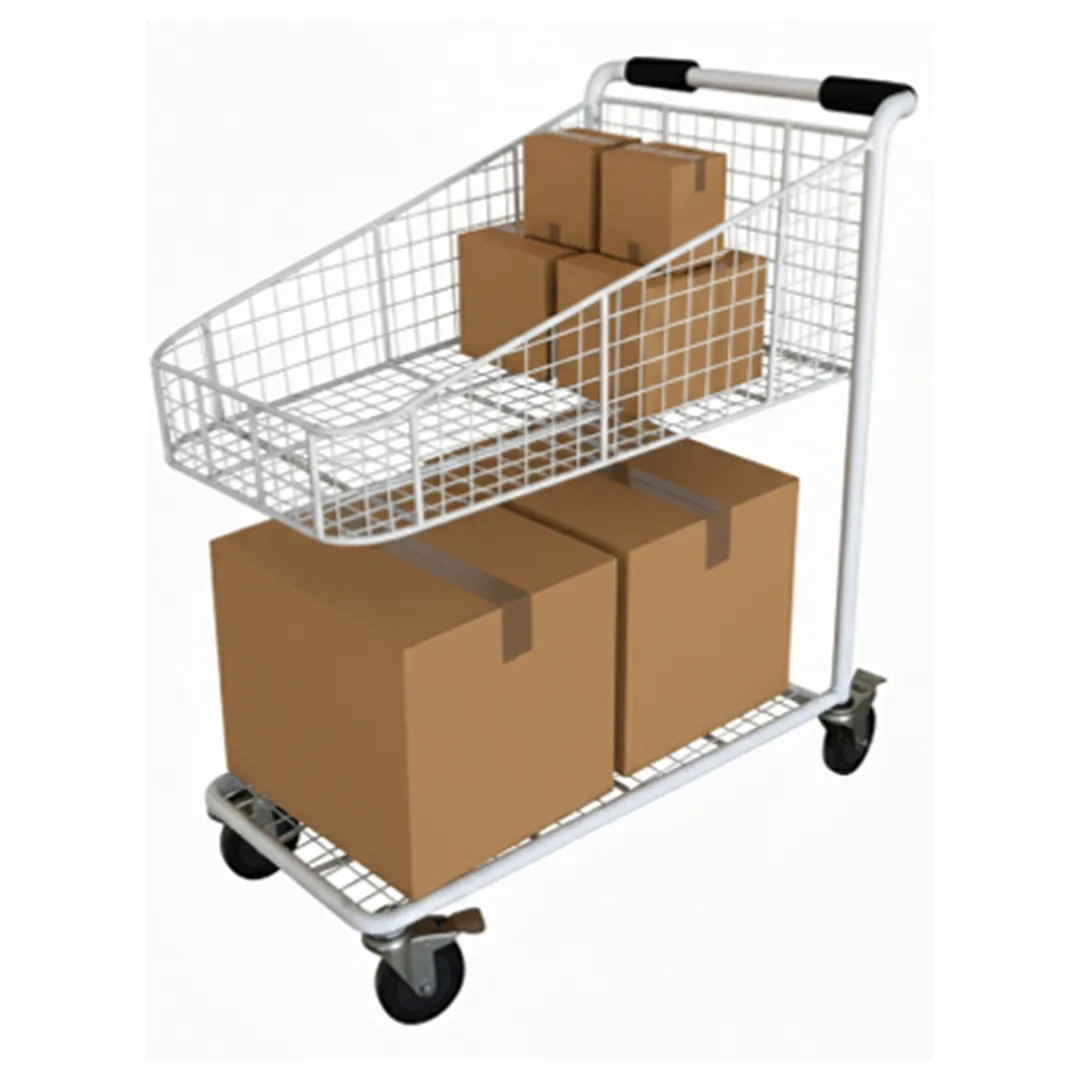

Dual-Tier Mixed Format Staging: Features a flat wire shelf below the top basket for standard flat cartons, combining bulk parcel transport and loose-item collection on a single compact rolling footprint.
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.
| Product Name | Tote-shaped Wire Shelf Cart |
|---|---|
| Overall Dimensions | 1290 mm (H) x 810 mm (W) x 680 mm (D) |
| Carrying Capacity / Load | Up to 50-100 Kgs |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | Powder-coated (White) |
| Structure | MS pipe frame; two wire mesh shelves-the upper shelf is tote-shaped for direct loading |
| Wheels | 4 Caster Wheels: 2 x Swivel with brake, 2 x Fixed |
| Functional Features | Super lightweight and mobile for high-speed picking - Tote-shaped upper shelf eliminates need for additional bins |
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
The Tote-shaped Wire Shelf Cart manufactured by Sameta Metal Pro features a verified load rating of Up to 50-100 Kgs, nominal dimensions of 1290 mm (H) x 810 mm (W) x 680 mm (D), and is fabricated from certified MS CRCA/HR/HRPO with Powder-coated (White). All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
