Collapsible & Nestable Roll Cage Trolley

Robust and versatile for heavy loads in warehouses, logistics, and retail. Features mesh or solid panels for security/visibility. Quick-fold mechanism for easy storage and deployment.

Load Capacity Up to 300-500 Kgs
Overall Dimensions 2136 mm (H) x 850 mm (W) x 700 mm (D)
Prime Raw Material MS CRCA/HR/HRPO
Surface Treatment Powder-coated or zinc-plated (corrosion resistant)
Fabrication Tolerances ISO 2768-m (±0.2 mm)
Export Sea Transit 18–24 Days (US East Coast)
ISO 9001:2015 Traceable
Factory-Direct OEM Pricing
Custom CAD & Sizing
Export Ready (ISPM-15 Crating)
Operational Value & Industrial Application

The Shop-Floor Challenge & Sameta's Engineering Solution

Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.

The Operational Challenge

Return logistics networks waste massive amounts of trailer volume shipping rigid empty roll cages back to distribution centers, driving up reverse logistics freight costs.

Target Deployment: Retail distribution networks, supermarket store deliveries, reverse logistics loops, and third-party logistics (3PL) hubs.

Sameta's Engineering Innovation

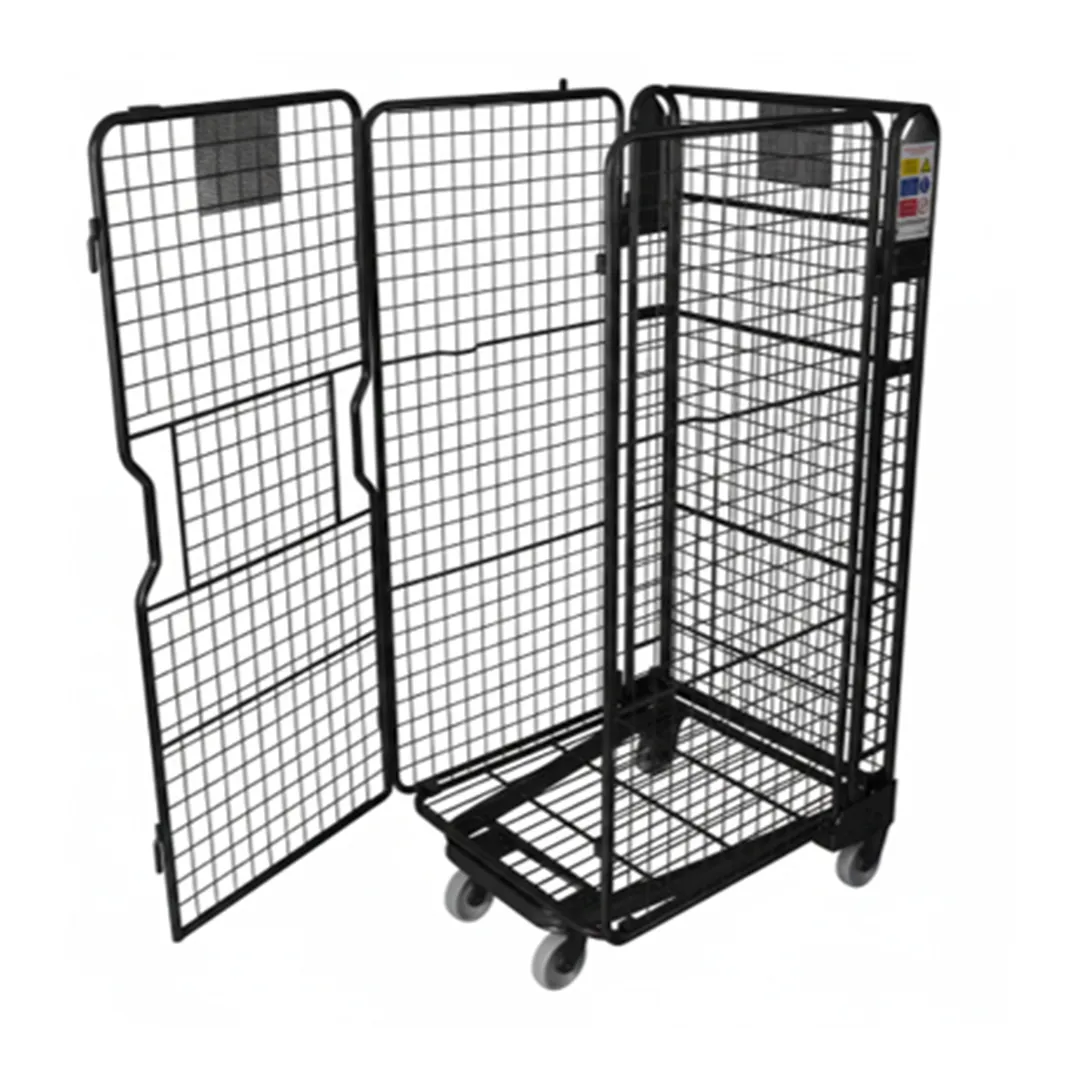

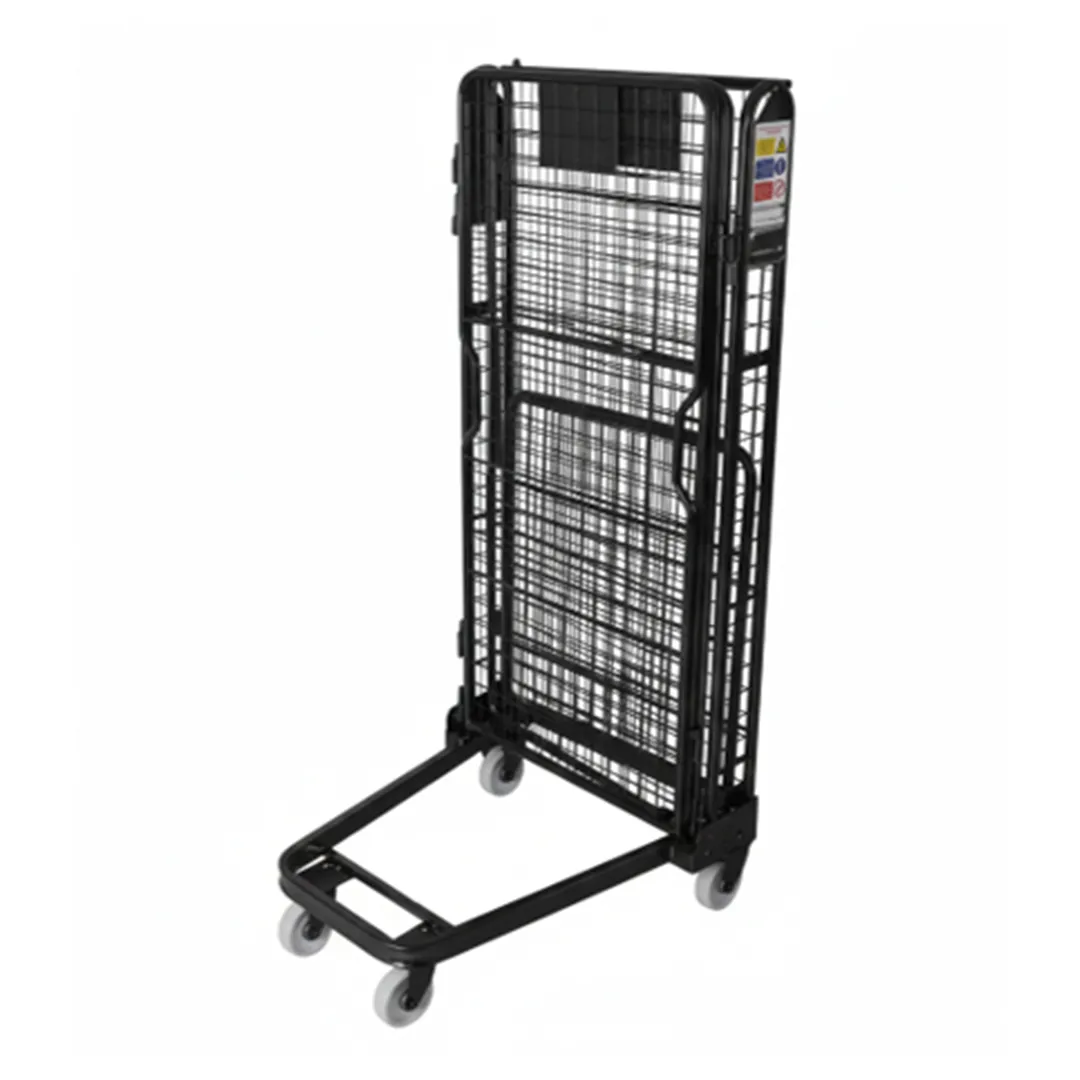

A-Frame Quick-Fold Nesting Mechanism: Built with a spring-assisted hinged baseplate and folding wire-mesh sidewalls that fold flat into an A-frame footprint, allowing empty trolleys to nest tightly inside one another.

Backhaul Trailer Cube Optimization: Nesting 4-to-1 dramatically reduces empty backhaul space inside delivery trucks and eliminates staging congestion at retail receiving docks.

Floor Space Optimization Clever geometry frees staging dock area
Zero Transit Damage Engineered parcel retention during fast motion
Ergonomic Worker Flow Dual handles, light tare weight, low-effort push
Technical Parameters

Technical Specifications & Quality Compliance

Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.

Engineering Specifications
Product Name Collapsible & Nestable Roll Cage Trolley
Overall Dimensions 2136 mm (H) x 850 mm (W) x 700 mm (D)
Carrying Capacity / Load Up to 300-500 Kgs
Raw Material Grade MS CRCA/HR/HRPO
Surface Finish & Coating Powder-coated or zinc-plated (corrosion resistant)
Structure Frame made from MS pipe - Shelves and intermediate supports in MS rod - Foldable top cover - A-shaped base for stacking
Wheels 4 Caster Wheels: 2 x Swivel with brake, 2 x Swivel without brake (standard size: 100 mm polyurethane/nylon)
Shelves 2 intermediate shelves and 1 base shelf - All shelves foldable for collapsibility and nesting
Functional Features Robust and versatile for heavy loads in warehouses, logistics, and retail. Features mesh or solid panels for security/visibility. Quick-fold mechanism for easy storage and deployment.
Quality & Fabrication Assurance
Fabrication Tolerances: ISO 2768-m CNC Fiber Laser cutting (±0.1 mm) and Multi-Axis Press Brake bending (±0.2 mm / ±0.5°).
Welding Standards: AWS D1.1 / IS 817 Certified robotic welding and manual MIG/TIG processes for zero structural weld fracture.
Pre-Treatment & Powder Coating 9-stage automated chemical pre-treatment with zinc/iron phosphating; 80–120μm DFT powder coating with 500+ hour ASTM B117 salt spray endurance.
Seaworthy Export Crating & Transit ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust wrap, 15 km from Chennai Port with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Part of our Material Handling & Intralogistics Solutions

Heavy-duty roll cages, nestable picking carts, and tugger carts built for high-throughput fulfillment hubs.

Explore Full Solution Suite
Procurement Due Diligence

Engineering & Procurement Q&A

Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.

What are the load capacity and technical specifications of the Collapsible & Nestable Roll Cage Trolley?

The Collapsible & Nestable Roll Cage Trolley features a verified load capacity of Up to 300-500 Kgs and nominal dimensions of 2136 mm (H) x 850 mm (W) x 700 mm (D). Fabricated by Sameta Metal Pro in Chennai, India from certified prime MS CRCA/HR/HRPO with Powder-coated or zinc-plated (corrosion resistant), all frame joints are robotic MIG/TIG welded conforming to AWS D1.1 and IS 817 structural standards for rugged industrial durability.

What steel grade, surface pre-treatment, and tolerances are guaranteed?

Fabricated to ISO 2768-m tolerances (±0.1 mm laser, ±0.2 mm / ±0.5° bending) using prime certified MS CRCA/HR/HRPO with 100% Mill Test Certificate (MTC) traceability. Surface finishing includes an automated 9-stage chemical immersion pre-treatment with zinc/iron phosphating and conveyorized electrostatic powder coating delivering 80–120 μm DFT and exceeding 500+ hours in ASTM B117 salt spray corrosion testing.

Can Sameta Metal Pro customize this product for contract OEM orders?

Yes, Sameta Metal Pro provides complete turnkey OEM/ODM customization from our 60,000 sq. ft. facility in Chennai, India. Our engineering team delivers 3D CAD models and DFM reviews within 24–48 hours, accommodating custom dimensional adjustments, caster/wheel options, shelf pitches, custom corporate RAL powder coat colors, and laser-marked client branding.

What are production lead times, MOQs, and export packing standards?

Standard production lead time is 2 to 3 weeks, with rapid First Article Inspection (FAI) prototypes delivered in 5–7 business days. We offer flexible pilot MOQs (25–50 units) up to multi-container enterprise rollouts. For global exports, shipments are packaged in ISPM-15 certified heat-treated wooden crates with VCI anti-rust wrapping, located 15 km from Chennai/Ennore ports with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Need Custom Dimensions or Bulk Pricing for Collapsible & Nestable Roll Cage Trolley?

Connect with our design engineering team. We review your project specifications, custom drawings, or facility requirements and provide 3D CAD proposals and volume pricing within 24–48 hours.
