Package Free Shipment Rack (Placon Roller Flow Rack)

Uses Placon rollers for highly efficient, low-friction carton movement - Enables package-free, loose item picking and fast split-case picking

Load Capacity 300 Kgs per Meter
Overall Dimensions 1800 mm (H) x 1200 mm (W) x 600 mm (D)
Prime Raw Material MS CRCA/HR/HRPO
Surface Treatment Powder coated (grey, ivory, or custom per facility) - Corrosion and wear resistant
Fabrication Tolerances ISO 2768-m (±0.2 mm)
Export Sea Transit 18–24 Days (US East Coast)
ISO 9001:2015 Traceable
Factory-Direct OEM Pricing
Custom CAD & Sizing
Export Ready (ISPM-15 Crating)
Operational Value & Industrial Application

The Shop-Floor Challenge & Sameta's Engineering Solution

Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.

The Operational Challenge

In fast-paced package-free shipping lines, parcels stall on static flat shelves, causing picker reach strain and bottlenecks during split-case picking.

Target Deployment: E-commerce package-free shipping hubs, split-case picking lines, and dock-adjacent FIFO buffer zones.

Sameta's Engineering Innovation

Low-Friction Placon Roller Flow Tracks: Engineered with multi-tier inclined Placon roller tracks that use gravity to glide crates and totes smoothly from the rear loading face to the front picking edge without power consumption.

Configurable 3-to-5 Tier Pitch Geometry: Features adjustable bracket mounts that allow supervisors to reconfigure track incline angles and vertical shelf spacing to suit shifting SKU heights and seasonal carton volumes.

Floor Space Optimization Clever geometry frees staging dock area
Zero Transit Damage Engineered parcel retention during fast motion
Ergonomic Worker Flow Dual handles, light tare weight, low-effort push
Technical Parameters

Technical Specifications & Quality Compliance

Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.

Engineering Specifications
Product Name Package Free Shipment Rack (Placon Roller Flow Rack)
Overall Dimensions 1800 mm (H) x 1200 mm (W) x 600 mm (D)
Carrying Capacity / Load 300 Kgs per Meter
Raw Material Grade MS CRCA/HR/HRPO
Surface Finish & Coating Powder coated (grey, ivory, or custom per facility) - Corrosion and wear resistant

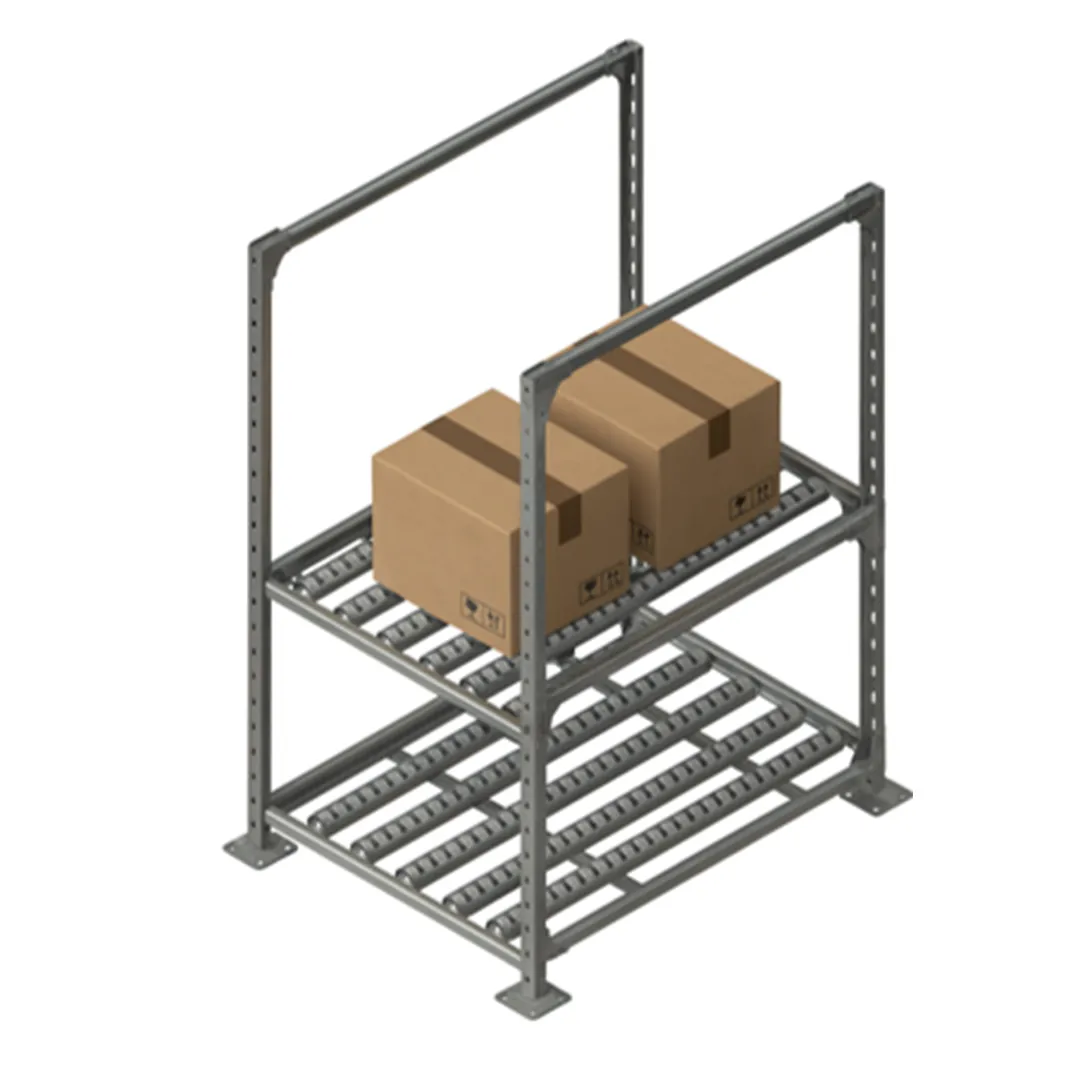

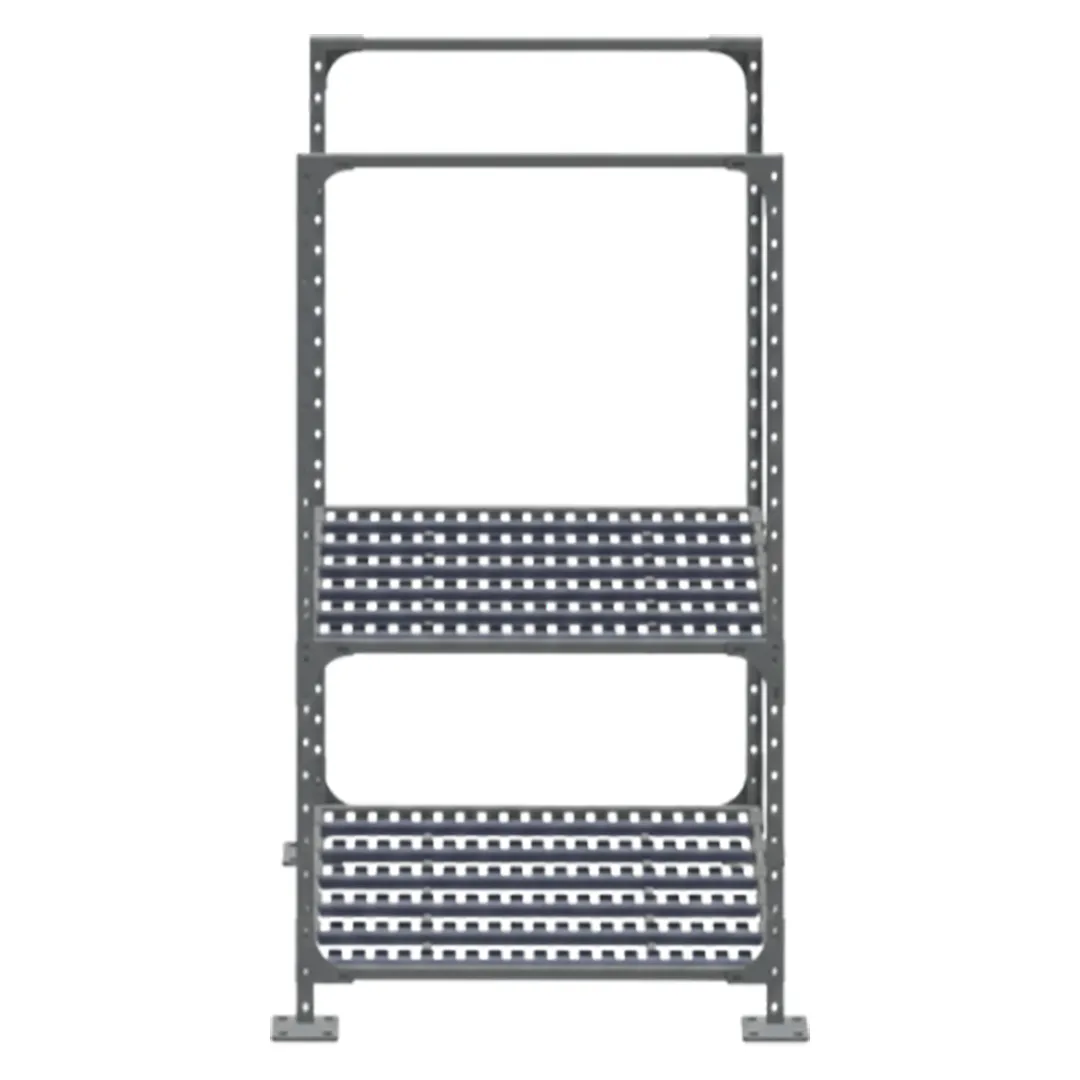

Structure Welded mild steel frame with powder coated finish - Multi-tier adjustable shelf design - Each shelf fitted with Placon roller tracks for sliding flow
Shelves / Rollers 3-5 levels with Placon roller tracks - Roller width options: 38 mm, 40 mm, 60 mm, 85 mm - Length per roller track: up to 4 meters
Operation Gravity flow/FIFO picking - Cartons move from loading to picking side on inclined roller tracks
Functional Features Uses Placon rollers for highly efficient, low-friction carton movement - Enables package-free, loose item picking and fast split-case picking
Quality & Fabrication Assurance
Fabrication Tolerances: ISO 2768-m CNC Fiber Laser cutting (±0.1 mm) and Multi-Axis Press Brake bending (±0.2 mm / ±0.5°).
Welding Standards: AWS D1.1 / IS 817 Certified robotic welding and manual MIG/TIG processes for zero structural weld fracture.
Pre-Treatment & Powder Coating 9-stage automated chemical pre-treatment with zinc/iron phosphating; 80–120μm DFT powder coating with 500+ hour ASTM B117 salt spray endurance.
Seaworthy Export Crating & Transit ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust wrap, 15 km from Chennai Port with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Part of our Material Handling & Intralogistics Solutions

Heavy-duty roll cages, nestable picking carts, and tugger carts built for high-throughput fulfillment hubs.

Explore Full Solution Suite
Procurement Due Diligence

Engineering & Procurement Q&A

Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.

What are the load capacity and technical specifications of the Package Free Shipment Rack (Placon Roller Flow Rack)?

The Package Free Shipment Rack (Placon Roller Flow Rack) features a verified load capacity of 300 Kgs per Meter and nominal dimensions of 1800 mm (H) x 1200 mm (W) x 600 mm (D). Fabricated by Sameta Metal Pro in Chennai, India from certified prime MS CRCA/HR/HRPO with Powder coated (grey, ivory, or custom per facility) - Corrosion and wear resistant, all frame joints are robotic MIG/TIG welded conforming to AWS D1.1 and IS 817 structural standards for rugged industrial durability.

What steel grade, surface pre-treatment, and tolerances are guaranteed?

Fabricated to ISO 2768-m tolerances (±0.1 mm laser, ±0.2 mm / ±0.5° bending) using prime certified MS CRCA/HR/HRPO with 100% Mill Test Certificate (MTC) traceability. Surface finishing includes an automated 9-stage chemical immersion pre-treatment with zinc/iron phosphating and conveyorized electrostatic powder coating delivering 80–120 μm DFT and exceeding 500+ hours in ASTM B117 salt spray corrosion testing.

Can Sameta Metal Pro customize this product for contract OEM orders?

Yes, Sameta Metal Pro provides complete turnkey OEM/ODM customization from our 60,000 sq. ft. facility in Chennai, India. Our engineering team delivers 3D CAD models and DFM reviews within 24–48 hours, accommodating custom dimensional adjustments, caster/wheel options, shelf pitches, custom corporate RAL powder coat colors, and laser-marked client branding.

What are production lead times, MOQs, and export packing standards?

Standard production lead time is 2 to 3 weeks, with rapid First Article Inspection (FAI) prototypes delivered in 5–7 business days. We offer flexible pilot MOQs (25–50 units) up to multi-container enterprise rollouts. For global exports, shipments are packaged in ISPM-15 certified heat-treated wooden crates with VCI anti-rust wrapping, located 15 km from Chennai/Ennore ports with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Need Custom Dimensions or Bulk Pricing for Package Free Shipment Rack (Placon Roller Flow Rack)?

Connect with our design engineering team. We review your project specifications, custom drawings, or facility requirements and provide 3D CAD proposals and volume pricing within 24–48 hours.
