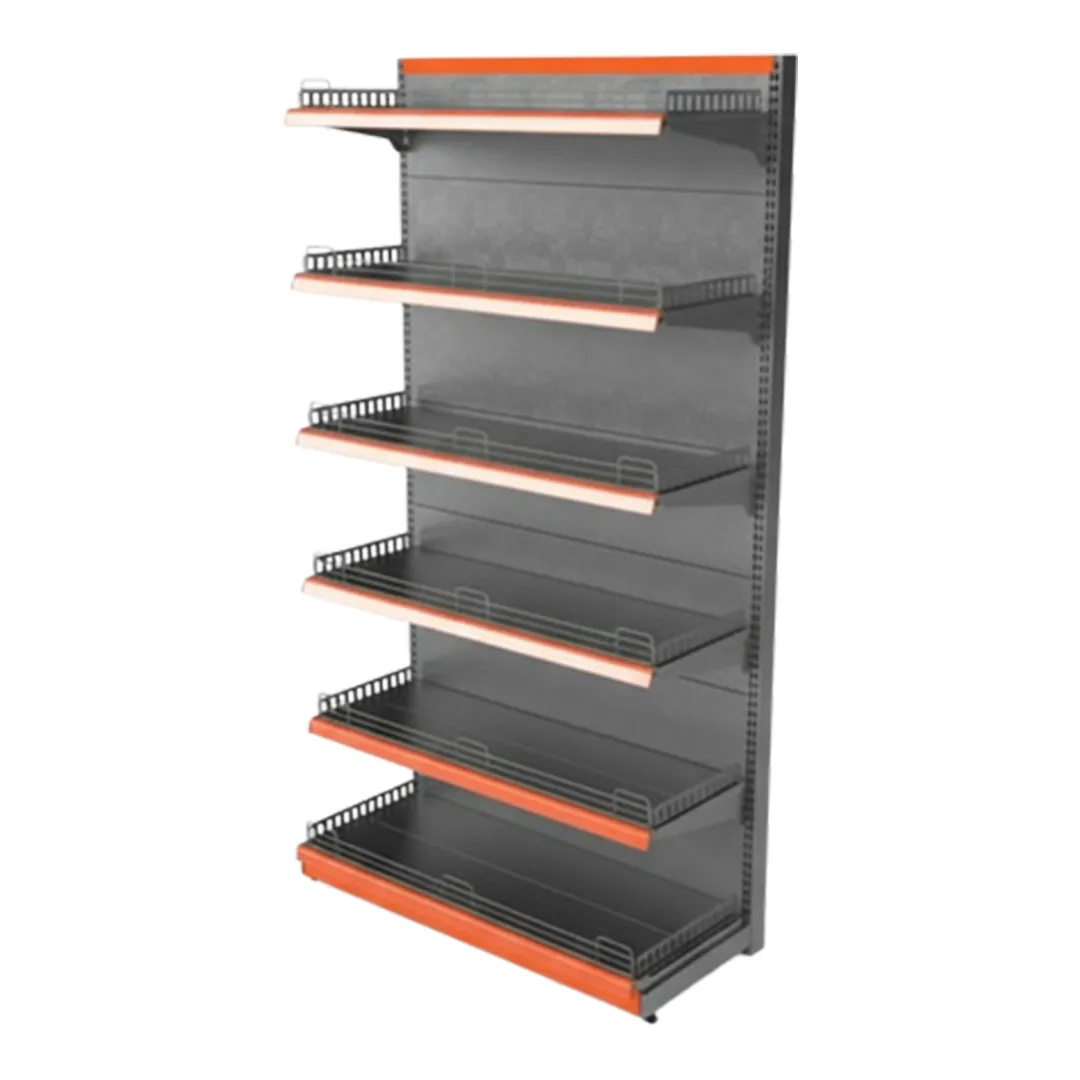

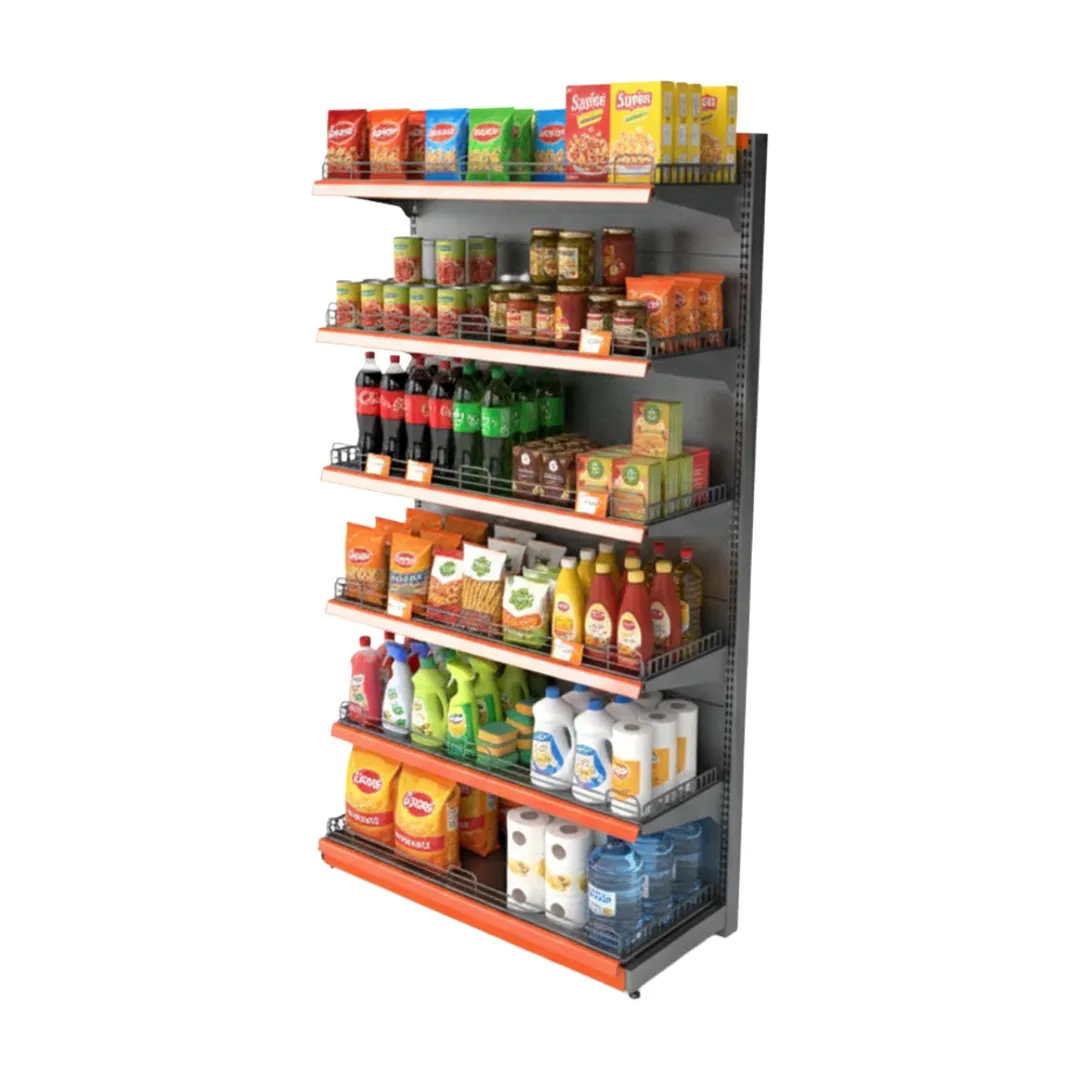

Supermarket L-Type Wall Clamped Gondolas /Racks/Display Fixtures
Modular wall-clamped display fixture
Technical Specifications & Quality Compliance
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.
| Product Name | Supermarket L-Type Wall Clamped Gondolas /Racks/Display Fixtures |
|---|---|
| Carrying Capacity / Load | 120 kg/shelf |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | Powder Coated |
| Material Specs | Tubular Uprights (60x40 mm Rectangular Section) Shelves: ≈0.8 mm, Back Cladding: ≈0.6 mm (CR Sheet) |
| Standard Dimensions | 1.5' Depth 7' Height. Per unit width range: 1' (Min) to 4' (Max) |
| Load Capacity | Max 120 Kgs UDL per shelf |
| Finish | Powder Coated in any customer-preferred color |
| Features | Shelf height adjustable via 25 mm pitch slots. Variable shelf count based on requirement. Optional MS Front Stopper to prevent product spillage. Equipped with plastic/acrylic data strips for easy display of prices and promotions |
| Functional Features | Modular wall-clamped display fixture |
Engineering & Procurement Q&A
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
What are the load capacity and technical specifications of the Supermarket L-Type Wall Clamped Gondolas /Racks/Display Fixtures?
The Supermarket L-Type Wall Clamped Gondolas /Racks/Display Fixtures manufactured by Sameta Metal Pro features a verified load rating of 120 kg/shelf, nominal dimensions of Customizable per engineering requirement, and is fabricated from certified MS CRCA/HR/HRPO with Powder Coated. All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
What steel grade, surface pre-treatment, and tolerances are guaranteed?
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Can Sameta Metal Pro customize this product for contract OEM orders?
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
What are production lead times, MOQs, and export packing standards?
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
