Supermarket & Retail Fixtures ISO 9001:2015 Certified

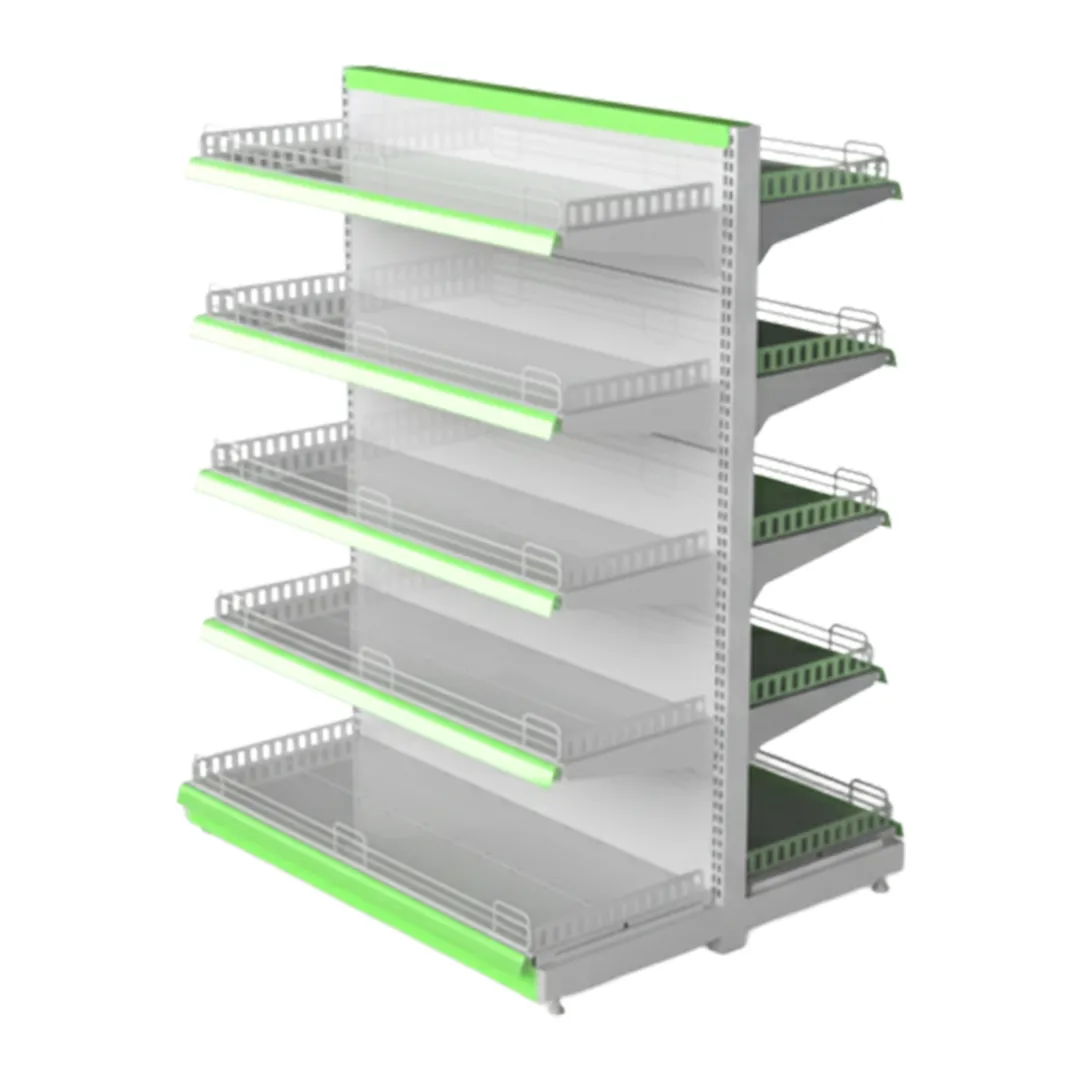

T-type Island Gondola /Racks/Display Fixtures

Modular island display fixture

Load Capacity 120 kg/shelf
Overall Dimensions Customizable per engineering requirement
Prime Raw Material MS CRCA/HR/HRPO
Surface Treatment Powder Coated
Fabrication Tolerances ISO 2768-m (±0.2 mm)
Export Sea Transit 18–24 Days (US East Coast)
ISO 9001:2015 Traceable
Factory-Direct OEM Pricing
Custom CAD & Sizing
Export Ready (ISPM-15 Crating)
Technical Parameters

Technical Specifications & Quality Compliance

Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.

Engineering Specifications
Product Name T-type Island Gondola /Racks/Display Fixtures
Carrying Capacity / Load 120 kg/shelf
Raw Material Grade MS CRCA/HR/HRPO
Surface Finish & Coating Powder Coated
Material Specs Tubular Uprights (60x40 mm Rectangular Section) Shelves: ≈0.8 mm, Back Cladding: ≈0.6 mm (CR Sheet)
Standard Dimensions 3' Depth x 6' Height. Per unit width range: 1' (Min) to 4' (Max)
Load Capacity Max 120 Kgs UDL per shelf
Finish Powder Coated in any customer-preferred color
Features Shelf height adjustable via 25 mm pitch slots. Variable shelf count based on requirement. Optional MS Front Stopper to prevent product spillage. Equipped with plastic/acrylic data strips for easy display of prices and promotions
Functional Features Modular island display fixture
Quality & Fabrication Assurance
Fabrication Tolerances: ISO 2768-m CNC Fiber Laser cutting (±0.1 mm) and Multi-Axis Press Brake bending (±0.2 mm / ±0.5°).
Welding Standards: AWS D1.1 / IS 817 Certified robotic welding and manual MIG/TIG processes for zero structural weld fracture.
Pre-Treatment & Powder Coating 9-stage automated chemical pre-treatment with zinc/iron phosphating; 80–120μm DFT powder coating with 500+ hour ASTM B117 salt spray endurance.
Seaworthy Export Crating & Transit ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust wrap, 15 km from Chennai Port with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Part of our Retail Shelving & Supermarket Fixtures

Modular gondola wall and island shelving, checkout counters, and impulse dump bins engineered for high retail traffic.

Explore Full Solution Suite
Procurement Due Diligence

Engineering & Procurement Q&A

Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.

What are the load capacity and technical specifications of the T-type Island Gondola /Racks/Display Fixtures?

The T-type Island Gondola /Racks/Display Fixtures features a verified load capacity of 120 kg/shelf and nominal dimensions of Customizable per engineering requirement. Fabricated by Sameta Metal Pro in Chennai, India from certified prime MS CRCA/HR/HRPO with Powder Coated, all frame joints are robotic MIG/TIG welded conforming to AWS D1.1 and IS 817 structural standards for rugged industrial durability.

What steel grade, surface pre-treatment, and tolerances are guaranteed?

Fabricated to ISO 2768-m tolerances (±0.1 mm laser, ±0.2 mm / ±0.5° bending) using prime certified MS CRCA/HR/HRPO with 100% Mill Test Certificate (MTC) traceability. Surface finishing includes an automated 9-stage chemical immersion pre-treatment with zinc/iron phosphating and conveyorized electrostatic powder coating delivering 80–120 μm DFT and exceeding 500+ hours in ASTM B117 salt spray corrosion testing.

Can Sameta Metal Pro customize this product for contract OEM orders?

Yes, Sameta Metal Pro provides complete turnkey OEM/ODM customization from our 60,000 sq. ft. facility in Chennai, India. Our engineering team delivers 3D CAD models and DFM reviews within 24–48 hours, accommodating custom dimensional adjustments, caster/wheel options, shelf pitches, custom corporate RAL powder coat colors, and laser-marked client branding.

What are production lead times, MOQs, and export packing standards?

Standard production lead time is 2 to 3 weeks, with rapid First Article Inspection (FAI) prototypes delivered in 5–7 business days. We offer flexible pilot MOQs (25–50 units) up to multi-container enterprise rollouts. For global exports, shipments are packaged in ISPM-15 certified heat-treated wooden crates with VCI anti-rust wrapping, located 15 km from Chennai/Ennore ports with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Need Custom Dimensions or Bulk Pricing for T-type Island Gondola /Racks/Display Fixtures?

Connect with our design engineering team. We review your project specifications, custom drawings, or facility requirements and provide 3D CAD proposals and volume pricing within 24–48 hours.
