Three-Tier Open Pick and Stow Cart

Quick access from open sides - Raised edge stoppers prevent item spillage - Designed for efficient picking and restocking - Heavy-duty construction for warehouse use

Load Capacity Up to 360 Kgs
Overall Dimensions 1200 mm (H) x 1500 mm (W) x 600 mm (D)
Prime Raw Material MS CRCA/HR/HRPO
Surface Treatment EPOXY POWDER
Fabrication Tolerances ISO 2768-m (±0.2 mm)
Export Sea Transit 18–24 Days (US East Coast)
ISO 9001:2015 Traceable
Factory-Direct OEM Pricing
Custom CAD & Sizing
Export Ready (ISPM-15 Crating)
Operational Value & Industrial Application

The Shop-Floor Challenge & Sameta's Engineering Solution

Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.

The Operational Challenge

Standard picking carts require frequent 180° turns in narrow aisles that cause traffic delays, while mishandled barcode scanners frequently drop and shatter on concrete floors.

Target Deployment: Active fulfillment center pick/stow aisles, retail inventory replenishment routes, and parts kitting lines.

Sameta's Engineering Innovation

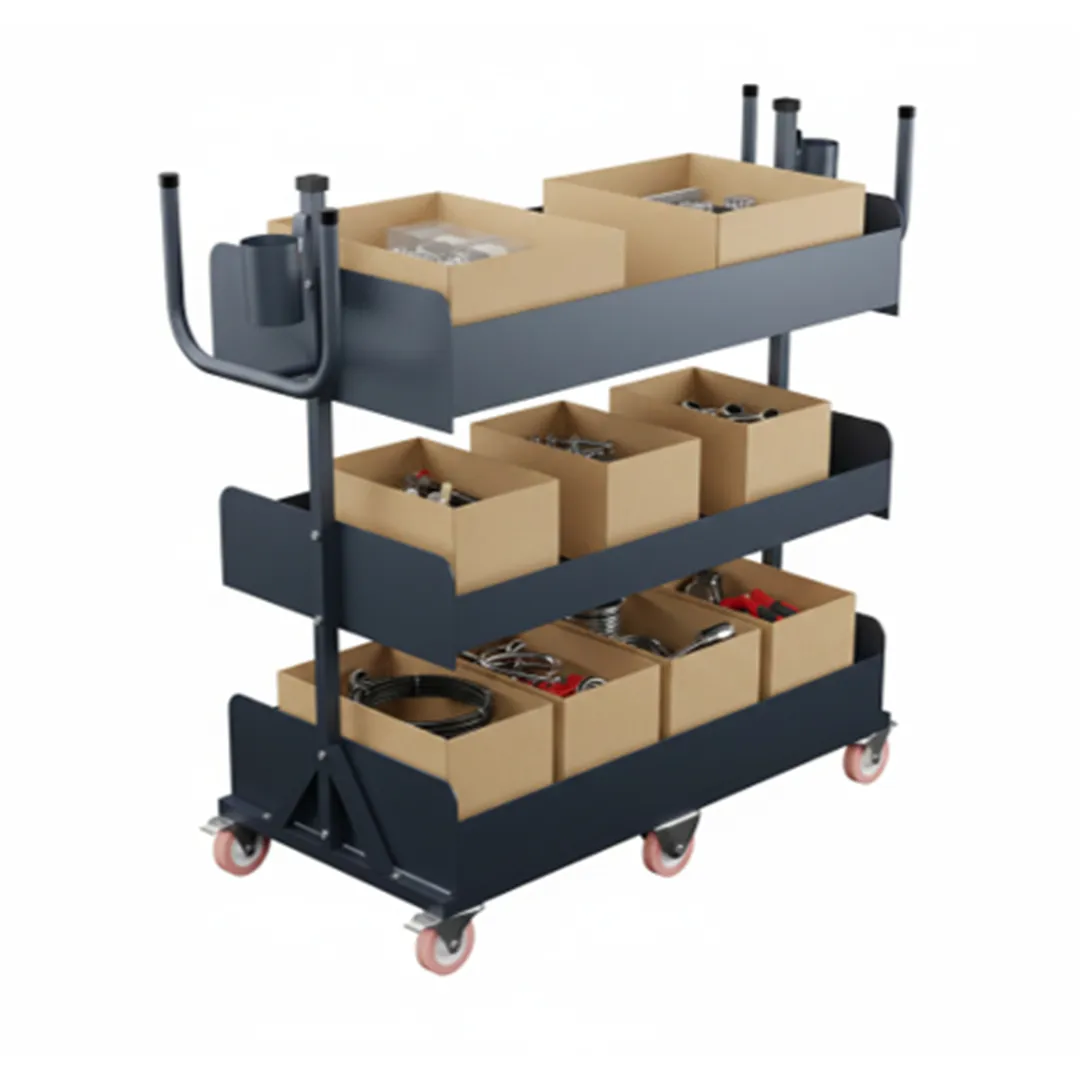

Dual-Direction U-Tubular Maneuvering: Features ergonomically curved U-shaped tubular push handles welded on both opposing ends, allowing operators to reverse direction instantly without executing wide, time-wasting U-turns in tight gangways.

Integrated Twin RF Scanner Holsters: Fitted with dedicated tubular holsters on both ends of the central vertical spine, keeping expensive RF scanner guns securely docked and instantly accessible for rapid scan-pick-stow cycles.

High-Flange Decks & Foot-Lock Casters: Deeply flanged steel deck walls prevent parcels from slipping during fast travel, backed by positive foot-brake casters for stationary rack-side stowing stability.

Floor Space Optimization Clever geometry frees staging dock area
Zero Transit Damage Engineered parcel retention during fast motion
Ergonomic Worker Flow Dual handles, light tare weight, low-effort push
Technical Parameters

Technical Specifications & Quality Compliance

Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.

Engineering Specifications
Product Name Three-Tier Open Pick and Stow Cart
Overall Dimensions 1200 mm (H) x 1500 mm (W) x 600 mm (D)
Carrying Capacity / Load Up to 360 Kgs
Raw Material Grade MS CRCA/HR/HRPO
Surface Finish & Coating EPOXY POWDER

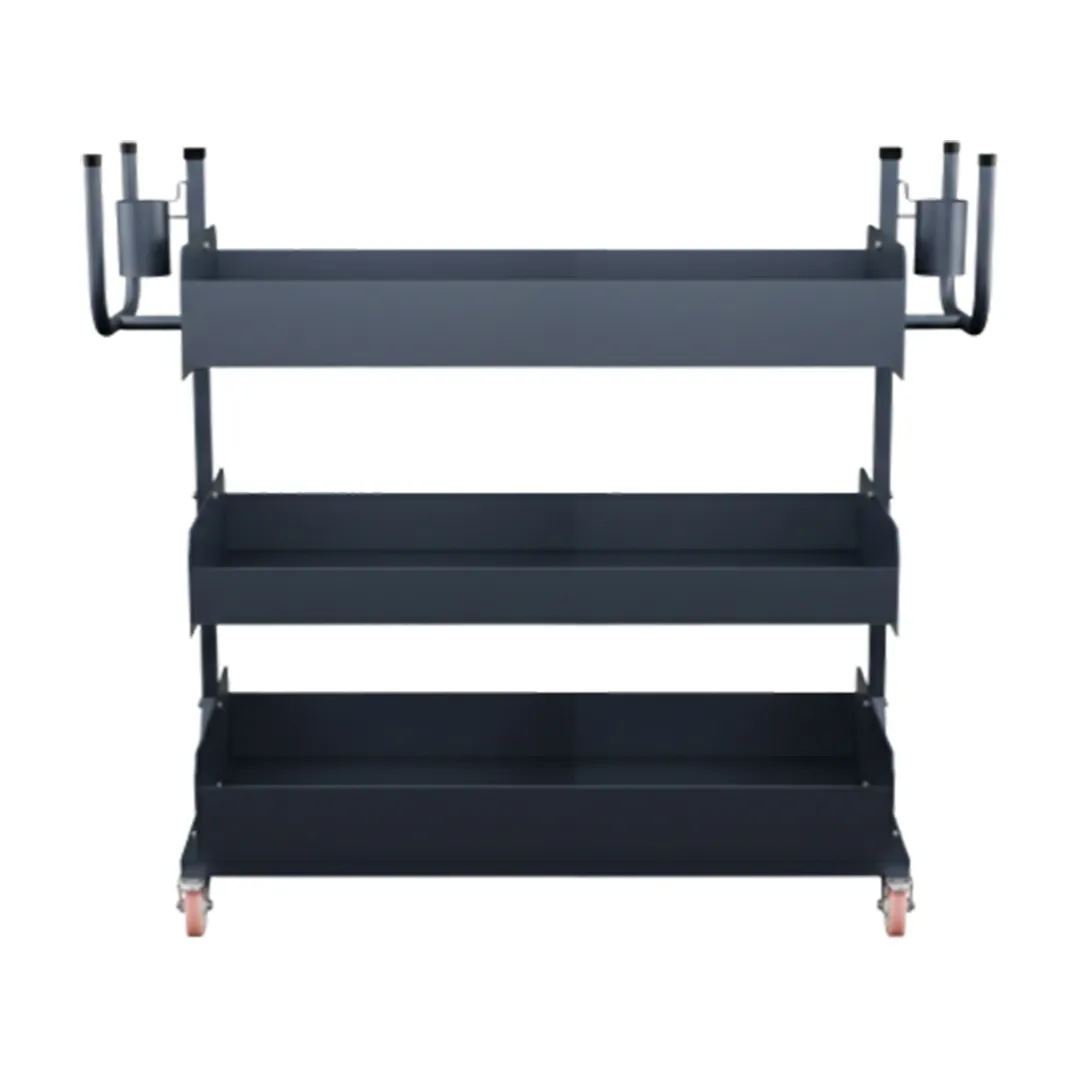

Structure Three open metal shelves with high side stoppers
Wheels 5" Caster Wheels: 4 x Swivel with brake, 2 x Fixed
Functional Features Quick access from open sides - Raised edge stoppers prevent item spillage - Designed for efficient picking and restocking - Heavy-duty construction for warehouse use
Quality & Fabrication Assurance
Fabrication Tolerances: ISO 2768-m CNC Fiber Laser cutting (±0.1 mm) and Multi-Axis Press Brake bending (±0.2 mm / ±0.5°).
Welding Standards: AWS D1.1 / IS 817 Certified robotic welding and manual MIG/TIG processes for zero structural weld fracture.
Pre-Treatment & Powder Coating 9-stage automated chemical pre-treatment with zinc/iron phosphating; 80–120μm DFT powder coating with 500+ hour ASTM B117 salt spray endurance.
Seaworthy Export Crating & Transit ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust wrap, 15 km from Chennai Port with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Part of our Material Handling & Intralogistics Solutions

Heavy-duty roll cages, nestable picking carts, and tugger carts built for high-throughput fulfillment hubs.

Explore Full Solution Suite
Procurement Due Diligence

Engineering & Procurement Q&A

Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.

What are the load capacity and technical specifications of the Three-Tier Open Pick and Stow Cart?

The Three-Tier Open Pick and Stow Cart features a verified load capacity of Up to 360 Kgs and nominal dimensions of 1200 mm (H) x 1500 mm (W) x 600 mm (D). Fabricated by Sameta Metal Pro in Chennai, India from certified prime MS CRCA/HR/HRPO with EPOXY POWDER, all frame joints are robotic MIG/TIG welded conforming to AWS D1.1 and IS 817 structural standards for rugged industrial durability.

What steel grade, surface pre-treatment, and tolerances are guaranteed?

Fabricated to ISO 2768-m tolerances (±0.1 mm laser, ±0.2 mm / ±0.5° bending) using prime certified MS CRCA/HR/HRPO with 100% Mill Test Certificate (MTC) traceability. Surface finishing includes an automated 9-stage chemical immersion pre-treatment with zinc/iron phosphating and conveyorized electrostatic powder coating delivering 80–120 μm DFT and exceeding 500+ hours in ASTM B117 salt spray corrosion testing.

Can Sameta Metal Pro customize this product for contract OEM orders?

Yes, Sameta Metal Pro provides complete turnkey OEM/ODM customization from our 60,000 sq. ft. facility in Chennai, India. Our engineering team delivers 3D CAD models and DFM reviews within 24–48 hours, accommodating custom dimensional adjustments, caster/wheel options, shelf pitches, custom corporate RAL powder coat colors, and laser-marked client branding.

What are production lead times, MOQs, and export packing standards?

Standard production lead time is 2 to 3 weeks, with rapid First Article Inspection (FAI) prototypes delivered in 5–7 business days. We offer flexible pilot MOQs (25–50 units) up to multi-container enterprise rollouts. For global exports, shipments are packaged in ISPM-15 certified heat-treated wooden crates with VCI anti-rust wrapping, located 15 km from Chennai/Ennore ports with 18–24 days ocean transit to US East Coast and 25–30 days to US West Coast.

Need Custom Dimensions or Bulk Pricing for Three-Tier Open Pick and Stow Cart?

Connect with our design engineering team. We review your project specifications, custom drawings, or facility requirements and provide 3D CAD proposals and volume pricing within 24–48 hours.
