Ideal for package transport, sorting, or picking - Dual platform boosts efficiency for split loads
Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.
Long platform carts have wide turning radii that cause collisions with pallet racks in narrow aisles, while solid sheet decks collect warehouse dust and add unnecessary tare weight.
Target Deployment: Heavy parcel staging corridors, narrow-aisle picking gangways, and long-load distribution hubs.

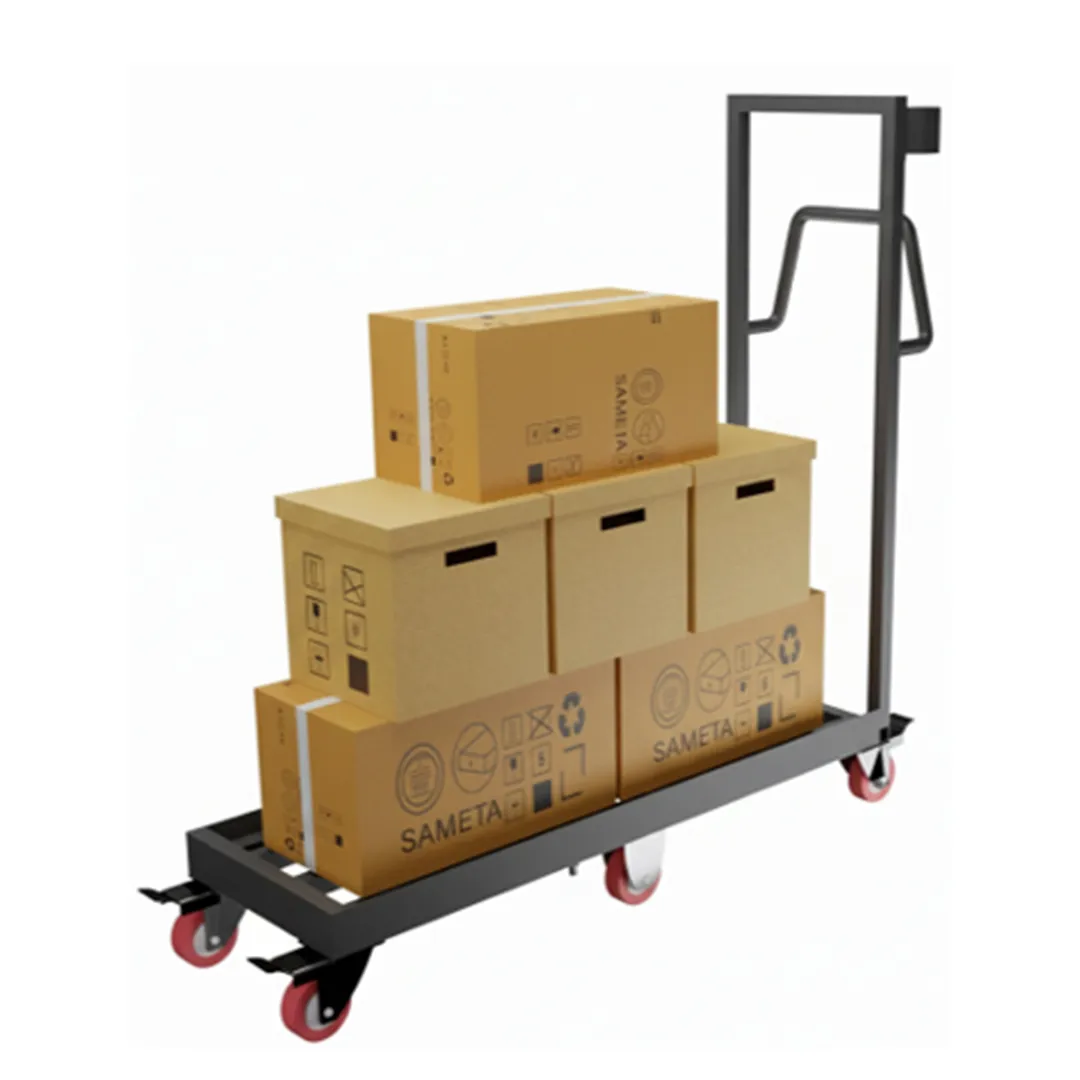

Zero-Radius 6-Wheel Rocker Steering: Engineered with a specialized 6-wheel running gear—featuring two central fixed load-bearing wheels flanked by four corner swivel casters. This rocker geometry allows operators to spin a fully loaded cart 360° within its own length without clipping aisle racking.

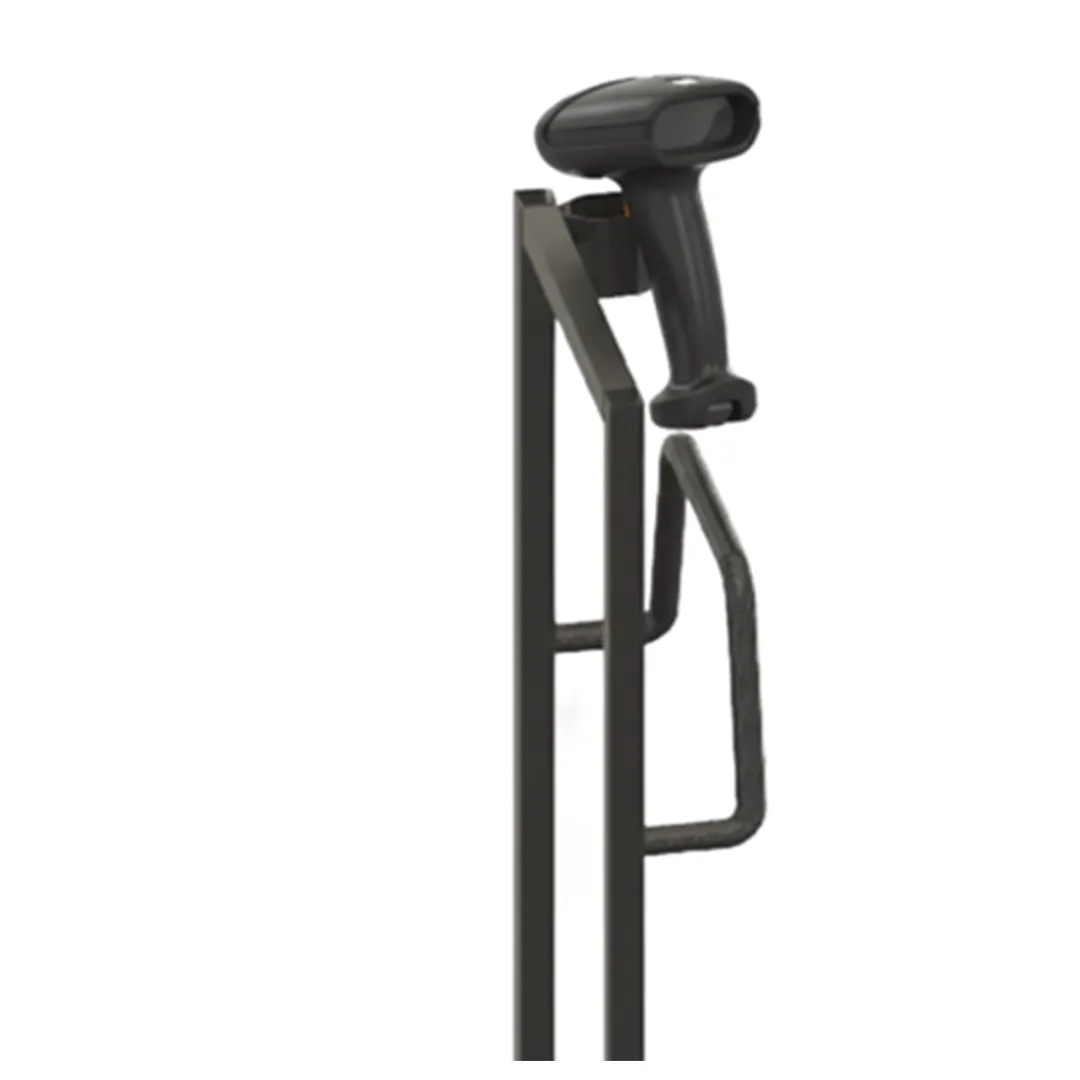

Self-Cleaning Skeleton Chassis & RF Holster: Open hollow-pipe platform frame cuts dead weight and lets warehouse dust fall through cleanly. Includes a welded RF scanner holster on the upper vertical mast for ergonomic tool parking after scanning.
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.
| Product Name | L Heavy Duty Platform Cart |
|---|---|
| Overall Dimensions | 1260 mm (H) x 1400 mm (W) x 625 mm (D) |
| Carrying Capacity / Load | Up to 300-350 Kgs |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | Powder-coated (Ivory RAL 9016, texture) |
| Structure | Manufactured from MS box pipe frame, MS angle reinforcement; top guard MS pipe, CR Sheet; robust platform |
| Wheels | 6 Caster Wheels: 4 x Swivel with brake, 2 x Fixed |
| Functional Features | Ideal for package transport, sorting, or picking - Dual platform boosts efficiency for split loads |
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
The L Heavy Duty Platform Cart manufactured by Sameta Metal Pro features a verified load rating of Up to 300-350 Kgs, nominal dimensions of 1260 mm (H) x 1400 mm (W) x 625 mm (D), and is fabricated from certified MS CRCA/HR/HRPO with Powder-coated (Ivory RAL 9016, texture). All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
