Open platform ideal for bulk carton movement - Compact and maneuverable for tight warehouse aisles - Strong robust construction for heavy-duty tasks
Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.
Navigating bulk carton loads through congested aisles is frequently hampered by restrictive cart side rails, while solid platforms add dead weight and trap warehouse debris.
Target Deployment: Bulk carton warehousing, logistics cross-dock sorting lines, and industrial manufacturing assembly floors.
Open-Sided Box Section Skeleton: Fabricated using 32×32×2 mm MS hollow box tubes braced with 40×40×3 mm structural angles, providing an unobstructed side-loading platform for oversized cartons while eliminating chassis twist up to 350 kg capacity.
Bi-Directional Ergonomic U-Handles: Equipped with 28 mm diameter MS tubular U-handles on opposing ends, ensuring fatigue-free bidirectional maneuvering and effortless cornering in tight gangways.
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.

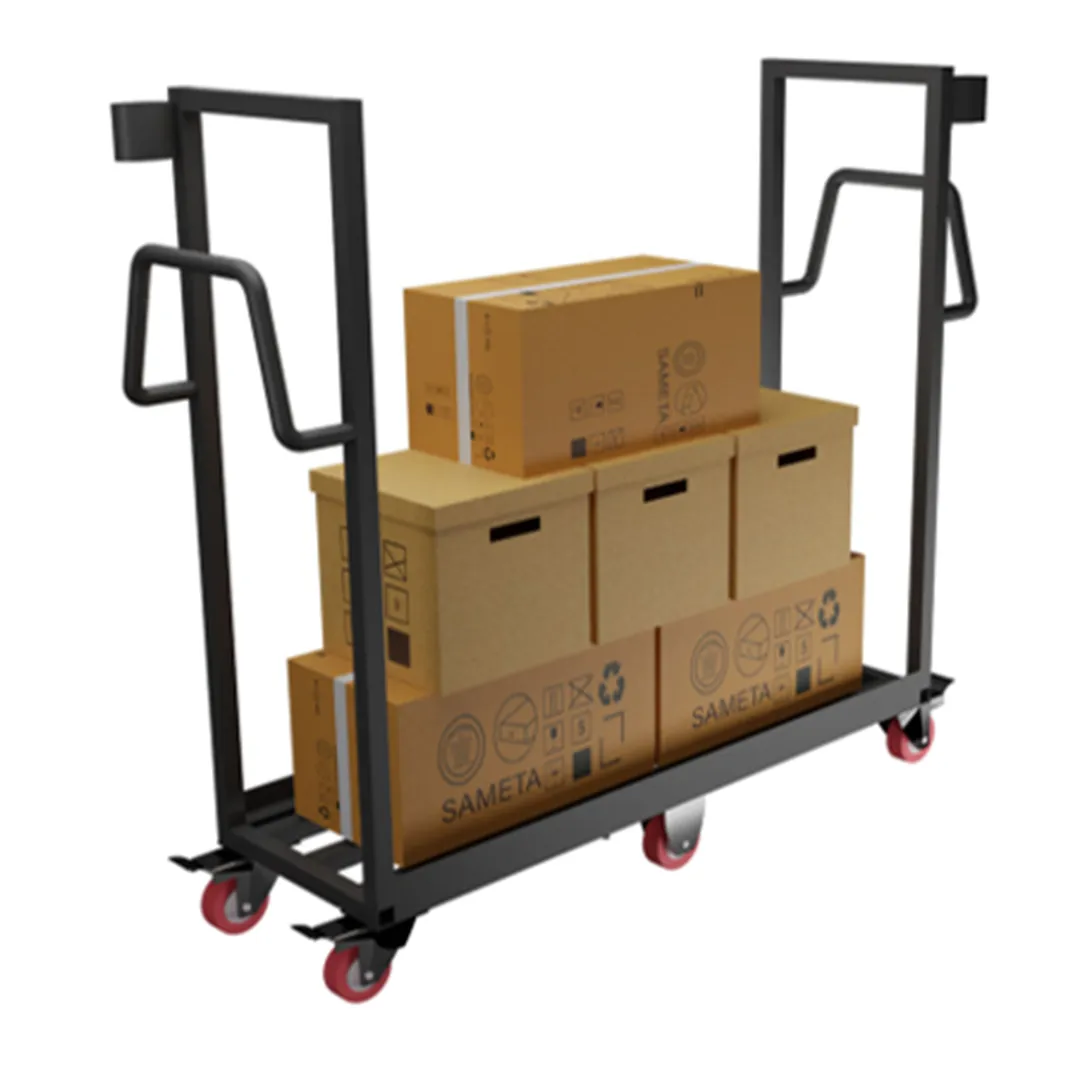

| Product Name | U-Shaped Heavy-Duty Cart |
|---|---|
| Overall Dimensions | 1330 mm (H) x 1200 mm (W) x 420 mm (D) |
| Carrying Capacity / Load | Up to 350 Kgs |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | Powder-coated, Ivory (RAL 1015) |
| Structure | MS Box Pipe Frame (32x32x2 mm), MS Handle Pipes (Dia 28 mm), MS Angle 40x40x3 mm for reinforcement |
| Wheels | 6 Caster Wheels: 4 x Swivel with brake, 2 x Fixed |
| Platform Height | ~275 mm (platform to ground) |
| Handle | U-shaped ergonomic handles at both ends for push/pull |
| Additional Features | MS scanner holder, structural angle bracings for stability |
| Functional Features | Open platform ideal for bulk carton movement - Compact and maneuverable for tight warehouse aisles - Strong robust construction for heavy-duty tasks |
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
The U-Shaped Heavy-Duty Cart manufactured by Sameta Metal Pro features a verified load rating of Up to 350 Kgs, nominal dimensions of 1330 mm (H) x 1200 mm (W) x 420 mm (D), and is fabricated from certified MS CRCA/HR/HRPO with Powder-coated, Ivory (RAL 1015). All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
