Specially designed for e-commerce and logistics zone-routing operations - Supports rapid sorting, packing and bagging tasks between conveyor lines
Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.
Last-mile delivery sorting centers face extreme floor space crunches between dispatch waves, with fixed bag frames permanently blocking floor space needed for other operations.
Target Deployment: Last-mile delivery hubs, courier dispatch stations, and route-based parcel sorting cells.

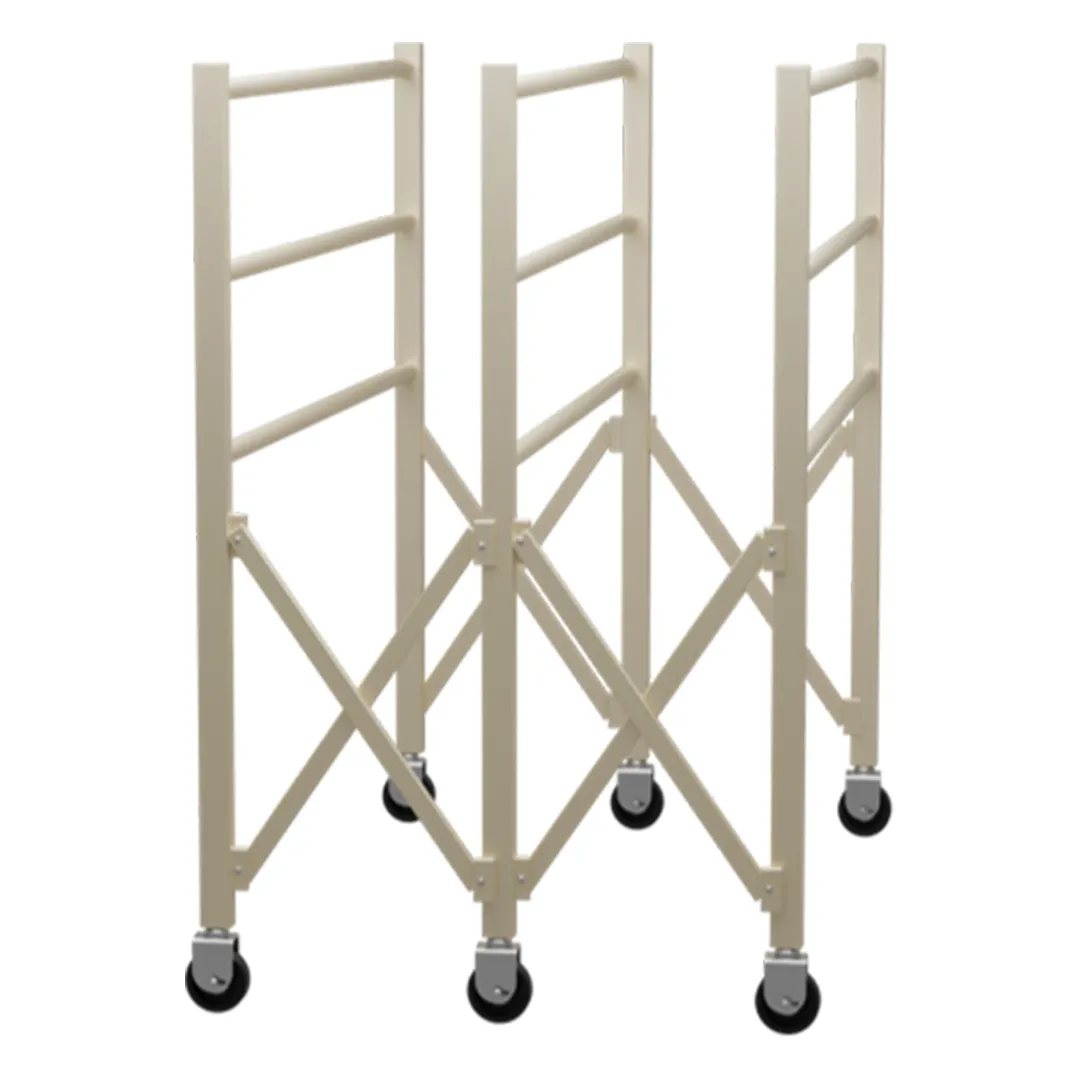

Scissor-Action Accordion Folding Frame: Engineered with a pantograph scissor linkage that expands smoothly to full sorting length during peak sort waves and collapses completely flat when idle, freeing over 85% of floor space.

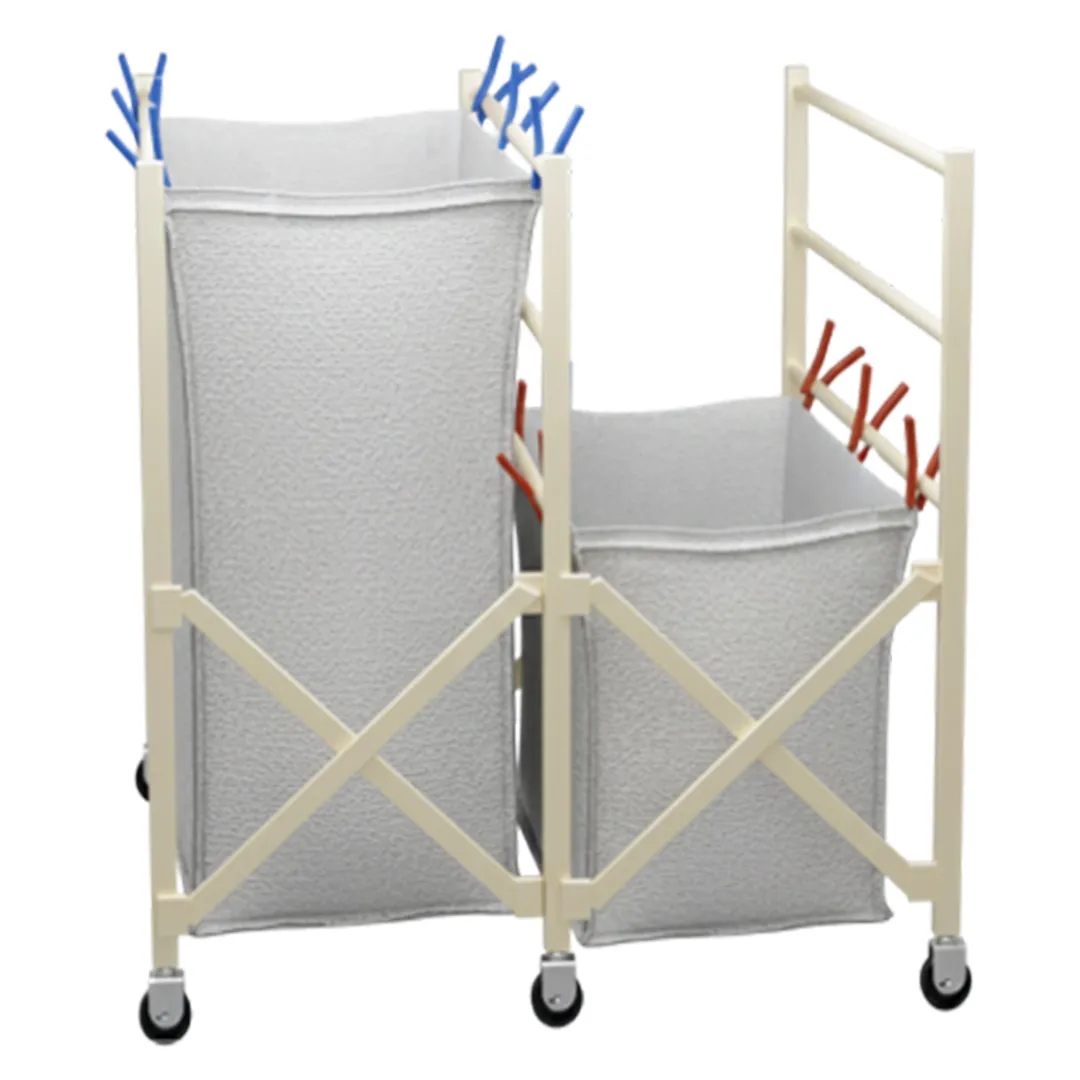

Color-Coded Multi-Zone Bag Suspension: Overhead tubular rails accommodate multiple mother delivery bags with color-coded clip mounts, providing unambiguous route sorting indicators that prevent route mis-sorts.
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.
| Product Name | Zone Based Routing Bag Stand |
|---|---|
| Overall Dimensions | 1050 mm (H) x 3000 mm (W) x 600 mm (D) |
| Carrying Capacity / Load | Up to 100 Kgs |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | Powder-coated (Ivory, matte finish for clean look and visibility) |
| Structure | Main frame made from MS square tubes; hanging rails made from MS round pipe; MS flat (15x4 mm) joining sections |
| Wheels | 6 Caster Wheels: 6 x Swivel (4") |
| Rack Weight | Approx. 38 Kg (easy to roll and reposition) |
| Functional Features | Specially designed for e-commerce and logistics zone-routing operations - Supports rapid sorting, packing and bagging tasks between conveyor lines |
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
The Zone Based Routing Bag Stand manufactured by Sameta Metal Pro features a verified load rating of Up to 100 Kgs, nominal dimensions of 1050 mm (H) x 3000 mm (W) x 600 mm (D), and is fabricated from certified MS CRCA/HR/HRPO with Powder-coated (Ivory, matte finish for clean look and visibility). All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
