Trainable Design: Interconnects end-to-end for efficient long-haul mass movement. Quick Access: Secure, elastic front belt
Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.
Moving high-volume freight across sprawling logistics campuses using single push carts requires excessive labor hours and creates severe intra-facility traffic jams.
Target Deployment: Large-scale logistics hubs, cross-dock transit corridors, and automated tugger-train hauling loops.

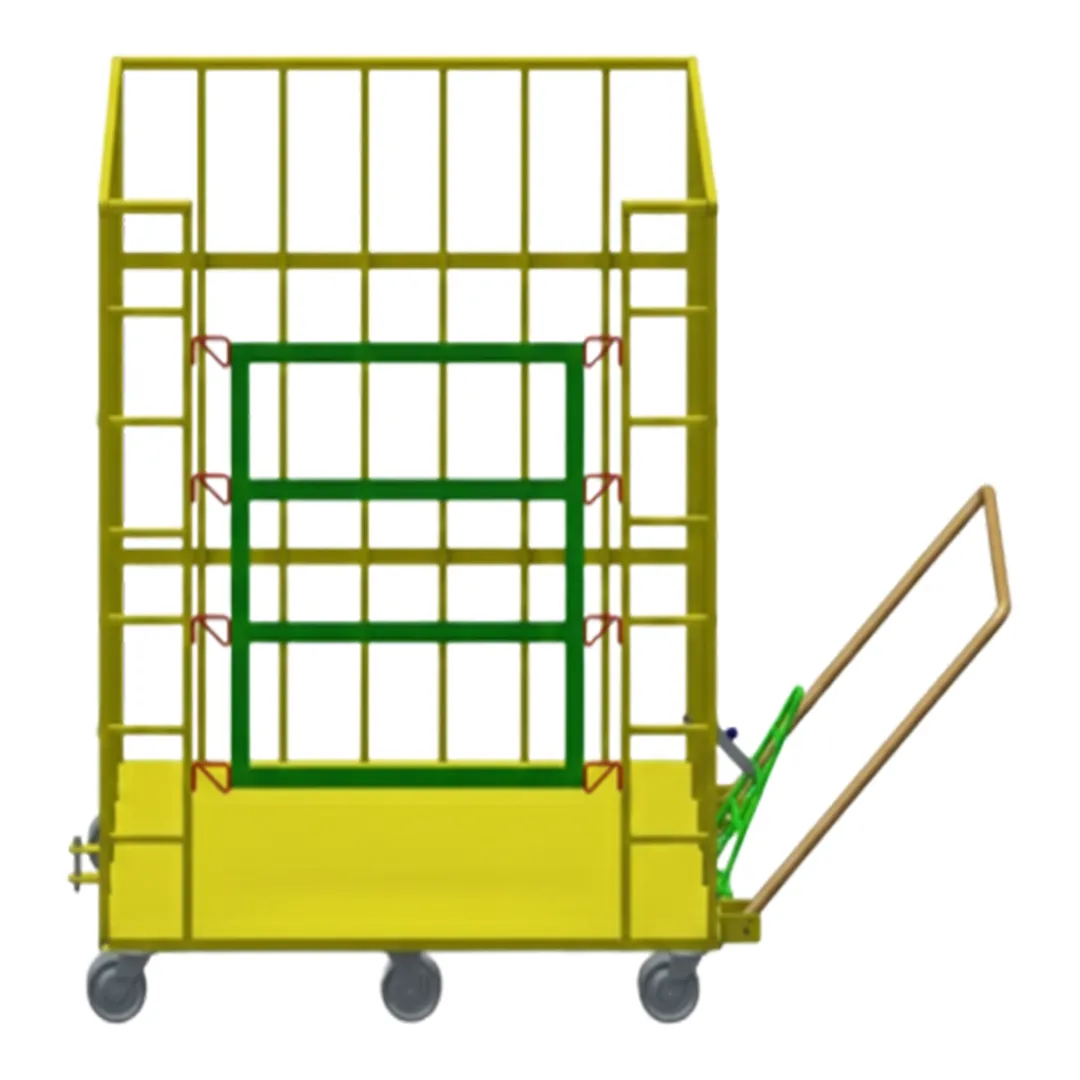

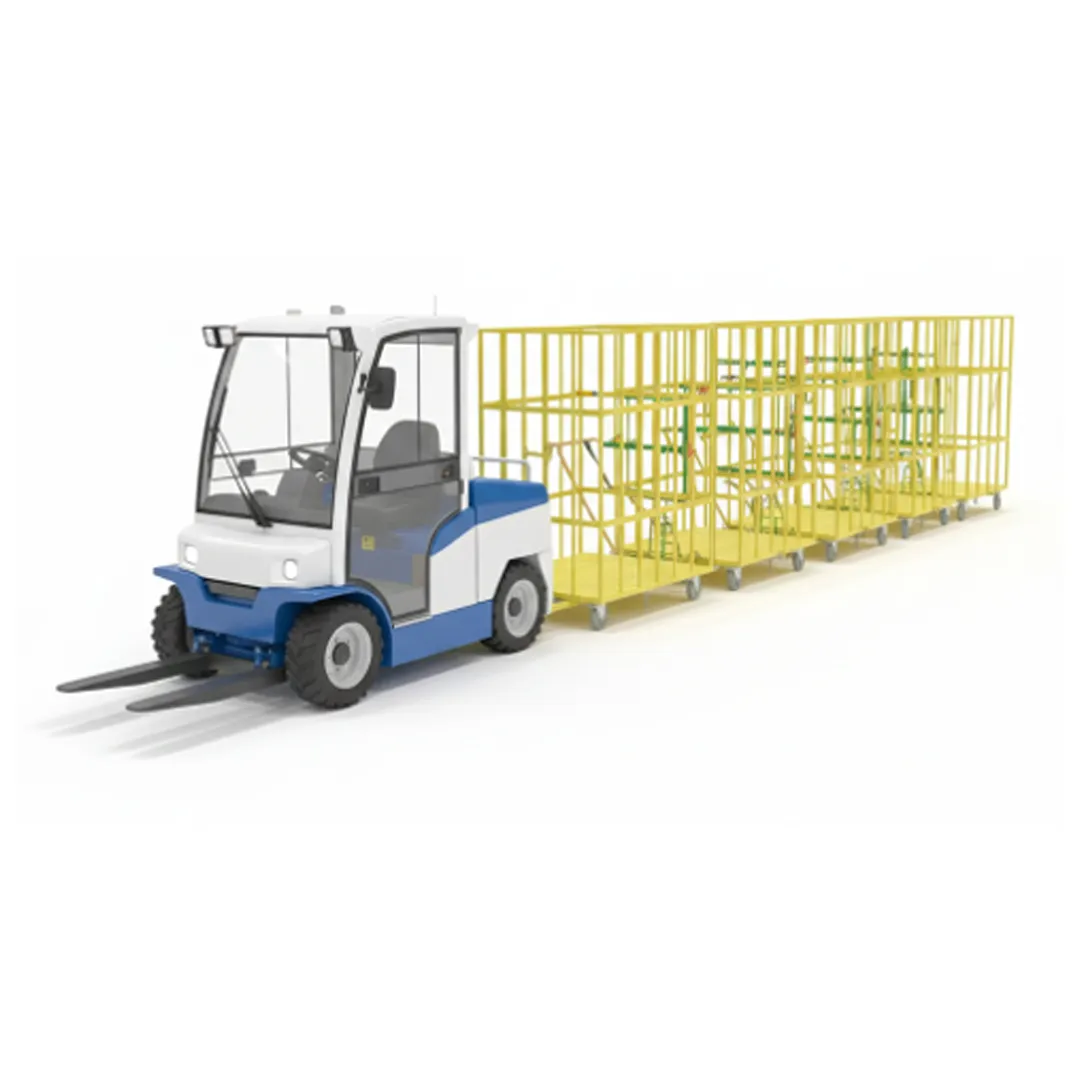

True-Tracking Trainable Tow-Link System: Engineered with precision tow bars and rear pintle hitches that allow multiple carts to link into a high-capacity tugger train pulled by a single tugger or tow vehicle.
Zero-Cut Cornering Geometry: Calibrated axle spacing and steering linkage ensure that trailing carts accurately follow the tow vehicle's turn radius, eliminating aisle cut-in and shelf collisions around 90° corners.
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.
| Product Name | Tow-Link Jumbo Cart |
|---|---|
| Overall Dimensions | 1700 mm (H) x 1600 mm (W) x 1000 mm (D) |
| Carrying Capacity / Load | Up to 350 Kgs |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | Grit blasted, zinc phosphate, powder-coated (RAL 9017) |
| Structure | Welded steel frame, base 1.2 mm CR sheet, multiple bracing flats and plates |
| Wheels | 6 Wheels (6"x2" PU): 2 x Fixed, 2 x Swivel, 2 x Swivel with brake |
| Functional Features | Trainable Design: Interconnects end-to-end for efficient long-haul mass movement. Quick Access: Secure, elastic front belt |
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
The Tow-Link Jumbo Cart manufactured by Sameta Metal Pro features a verified load rating of Up to 350 Kgs, nominal dimensions of 1700 mm (H) x 1600 mm (W) x 1000 mm (D), and is fabricated from certified MS CRCA/HR/HRPO with Grit blasted, zinc phosphate, powder-coated (RAL 9017). All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
