Ideal for e-commerce, logistics, and industrial warehouses - QR code and label holders fitted for digital inventory tracking
Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.
Standard open-back slotted angle racks allow cartons to tumble off the rear into narrow flue spaces during stocking, creating fire code violations and damaged goods.
Target Deployment: Fulfillment center reserve storage, industrial spare parts rooms, and archive storage aisles.
3-Sided Welded Mesh Flue Barrier: Clad on the rear and both side elevations in welded wire mesh, forming a continuous protective barrier that prevents cartons from slipping into rear flue spaces while maintaining full sprinkler water penetration.
Tool-Less Pitch Adjustability with Visual Auditing: Multi-punched slotted steel angle uprights allow rapid shelf height reconfiguration, while the open mesh allows inventory audit teams to conduct visual cycle counts without touching stored stock.
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.

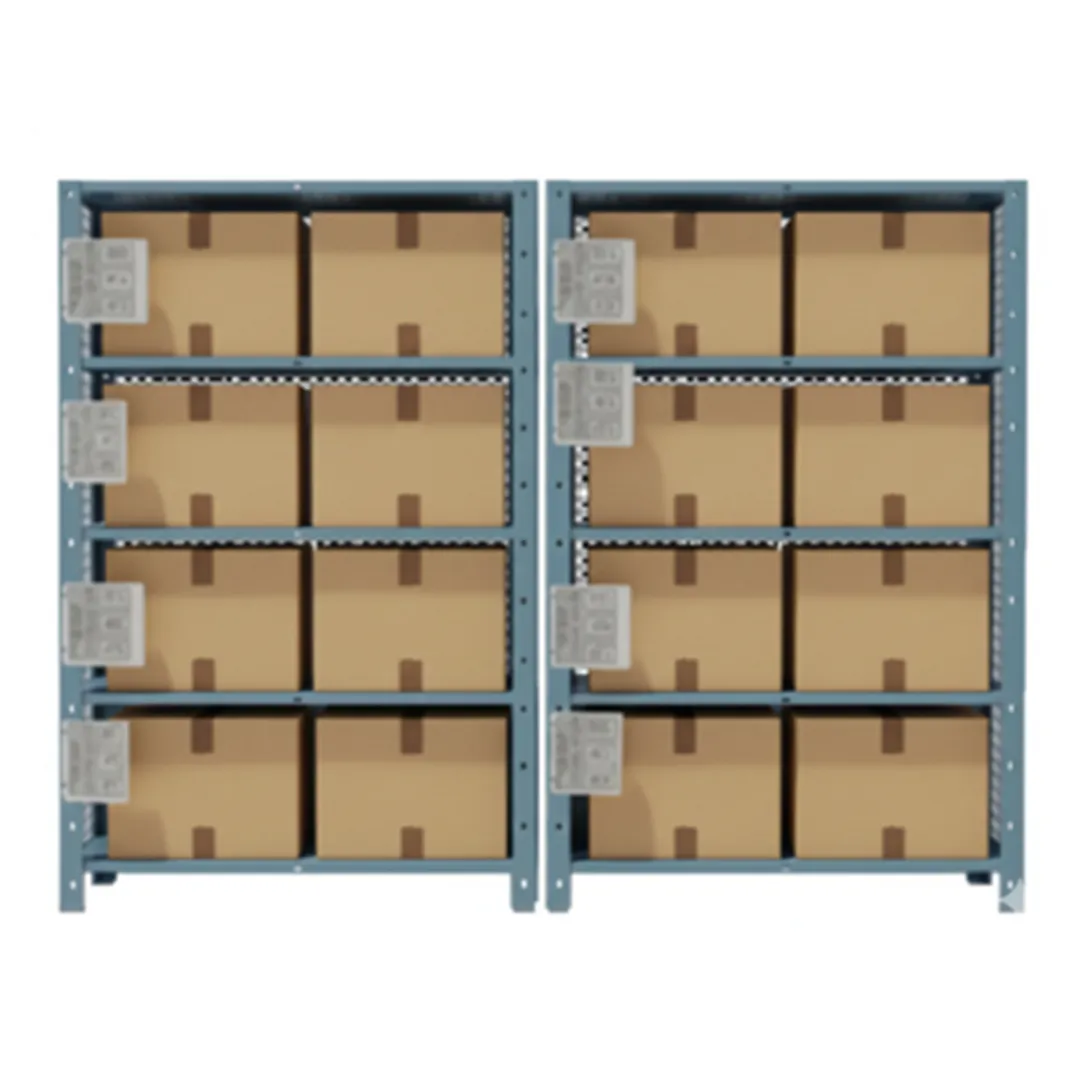

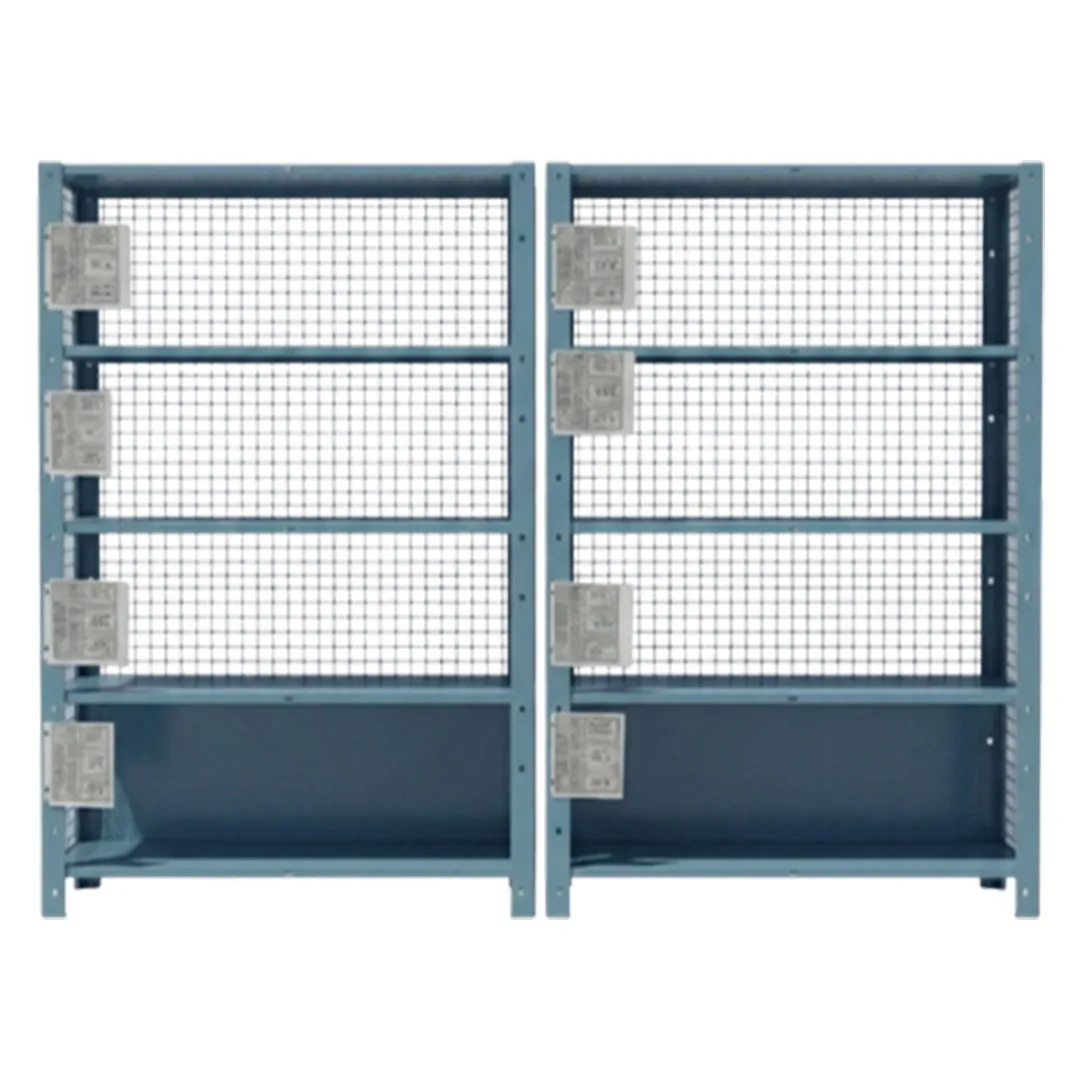

| Product Name | Warehouse Storage Rack with 3-Side Mesh Protection |
|---|---|
| Overall Dimensions | 2400 mm (H) x 1200 mm (W) x 600 mm (D) |
| Carrying Capacity / Load | Up to 1500 Kgs |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | Powder-coated (light blue or custom color as required) - Corrosion and impact resistant |
| Structure | Heavy-duty frame made from mild steel (MS), powder coated for durability - Three sides fitted with steel welded mesh panels for item security and airflow |
| Shelves | 5 adjustable steel shelves per unit - Each shelf supported with cross beams and fitted with mesh for anti-fall protection and ventilation |
| Access | Open front for fast picking - Back and sides meshed for secure storage, item visibility, and improved safety |
| Functional Features | Ideal for e-commerce, logistics, and industrial warehouses - QR code and label holders fitted for digital inventory tracking |
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
The Warehouse Storage Rack with 3-Side Mesh Protection manufactured by Sameta Metal Pro features a verified load rating of Up to 1500 Kgs, nominal dimensions of 2400 mm (H) x 1200 mm (W) x 600 mm (D), and is fabricated from certified MS CRCA/HR/HRPO with Powder-coated (light blue or custom color as required) - Corrosion and impact resistant. All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
