Tool-less adjustable shelving - Customizable size/load rating - Strong steel construction - Ideal for package-free storage, FIFO picking
Real-world operational challenges solved through custom sheet metal engineering, space-saving geometry, and workflow optimization.
Flat static shelving causes stock stagnation, picking reach strain, and inventory rotation errors in high-volume package-free order consolidation areas.
Target Deployment: Package-free shipping hubs, split-case picking stations, and automated sorting center buffer zones.

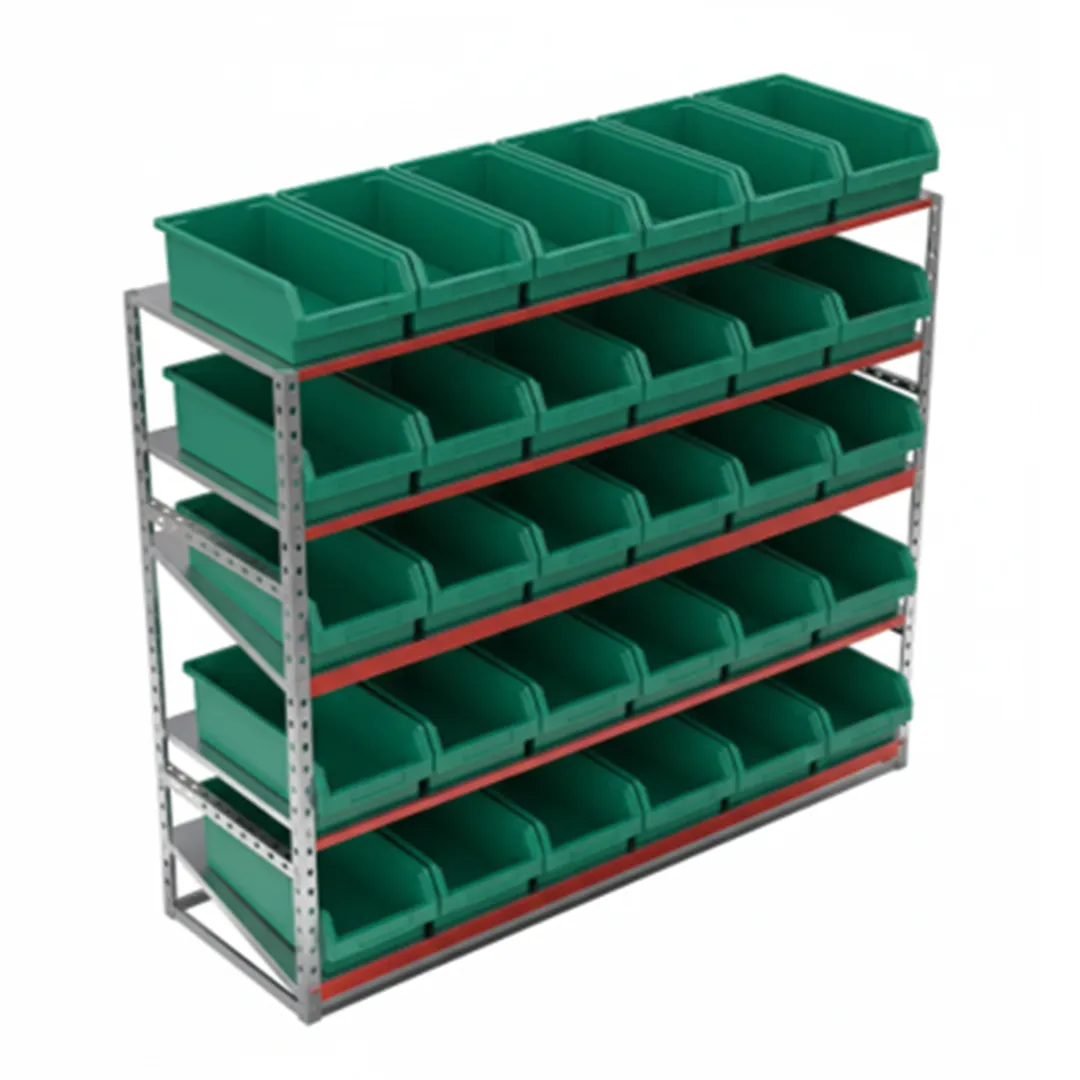

Gravity-Fed FIFO Inclined Decks: Engineered with forward-sloping steel shelves fitted with front retaining stops. Crates loaded from the rear replenish zone glide forward smoothly by gravity, guaranteeing strict First-In, First-Out (FIFO) material flow.
Tool-Less Pitch Adjustability: Heavy-duty slotted L-angle uprights with precision multi-pitch hole patterns allow operators to adjust shelf heights and deck angles rapidly using simple hand fasteners, with an overall structure rated for 360 kg payload without twisting.
Engineered to strict industrial manufacturing tolerances with complete raw material mill test traceability.
| Product Name | Slotted Angle Package-Free Shipment Rack |
|---|---|
| Overall Dimensions | 2100 mm (H) x 1800 mm (W) x 750 mm (D) |
| Carrying Capacity / Load | Up to 360 Kgs |
| Raw Material Grade | MS CRCA/HR/HRPO |
| Surface Finish & Coating | EPOXY POWDER |
| Structure | Slotted L angle uprights with adjustable slanted shelves |
| Shelves | 3 steel shelves, slanted and bolted for adjustable height |
| Functional Features | Tool-less adjustable shelving - Customizable size/load rating - Strong steel construction - Ideal for package-free storage, FIFO picking |
Key technical, compliance, and sourcing answers for engineering teams, facility managers, and B2B procurement leads.
The Slotted Angle Package-Free Shipment Rack manufactured by Sameta Metal Pro features a verified load rating of Up to 360 Kgs, nominal dimensions of 2100 mm (H) x 1800 mm (W) x 750 mm (D), and is fabricated from certified MS CRCA/HR/HRPO with EPOXY POWDER. All joints are welded conforming to AWS D1.1 and IS 817 standards for rugged industrial durability.
Fabricated exclusively from prime certified steel with 100% Mill Test Certificate (MTC) heat traceability. Parts are processed on high-precision CNC fiber lasers (±0.1 mm) and multi-axis CNC press brakes (±0.2 mm / ±0.5°) adhering to ISO 2768-m. Surface protection features an automated 9-stage chemical pre-treatment with zinc/iron phosphating and conveyorized powder coating (60–80μ DFT) tested to 500+ hours of ASTM salt spray resistance.
Yes. As a turnkey contract manufacturer operating a 60,000 sq. ft. facility in Chennai, India, we support complete custom engineering. We can adjust dimensions, modify caster or hitch configurations, add RFID/barcode brackets, apply custom corporate RAL powder shades, and laser-mark customer asset tags. Our engineering team provides 3D CAD modeling and DFM analysis within 24–48 hours.
Production lead times typically range from 2 to 4 weeks depending on batch volume, with first-article prototype sampling delivered in 5–7 business days. We accommodate flexible Minimum Order Quantities (MOQs) for pilot testing up to multi-container enterprise rollouts. For global exports, products are packed in ISPM-15 heat-treated fumigated wooden crates with VCI anti-rust barrier wrapping, situated just 40 km from Chennai Port for streamlined ocean freight to North America, Europe, and the Middle East.
